Air Cylinder AC380V Lead Free Wave Solder Equipment 750mm Conveyor RF-350A
Wave Soldering Machine
Easy Operate Lead Free Wave Solder Equipment RF-350A
Basic Date of wave Solder Machine RF-350A
| Wave solder | RF-350A |
| Preheating System | |
| Preheating Model | IR tube Option : Hot Air Convection |
| No. of Preheating Zones | 3 |
| Preheating Length | 1800 MM |
| Preheating Temp. | Room Temperature : ~300C |
| Warm Time | Approx. 20/min |
| Conveyor System | |
| PCB Width ( L x W ) | 350 MM |
| Conveyor Direction | Optional |
| Conveyor Height | 750 MM |
| Componet Clearance (mm ) | 130 MM |
| Conveyor Width Adjustment | Manual |
| Conveyor Angle | 4 ~ 6 C |
| Spraying System | |
| Transmission Method | Air cylinder |
| Spraying Pressure | 0.25MPa ~ 0.4MPa |
| Flux Flow | Flux Flow meter |
| Auto Flux Feeding | Optional |
| Exhaust Method | Upper Exhaust |
| Exhaust Capacity | 25M3/min |
The Function of Wave Solder Equipment
Wave soldering is used to solder the components inserted on the PCB to play a role of
connection and fixation.
Feature of Wave Soldering Machine
1. The whole machine adopts Siemens PLC+ Lenovo computer + temperature control module
control, stable and reliable.
2. Powerful control software, running in Windows 7 system, English and Chinese can be
switched at any time.
3. IPC controls whole process, IPC+UPS+Controller forms a reliable system.
4. Stepper motor flux spraying device, precise motion, lose noise, suitable for frequent
action,long worklife.
5. Japanese 7-UP spray nozzle, spray area and deepness are adjustable.
6. Flux forced supply system to maintain constant flux supply pressure.
7. Perfect flux recovery and exhaust filtration system, beneficial to environmental protection.
8. 4 preheater total length: 2000mm.
9. Heating elements modular design, maintenance is convenient.

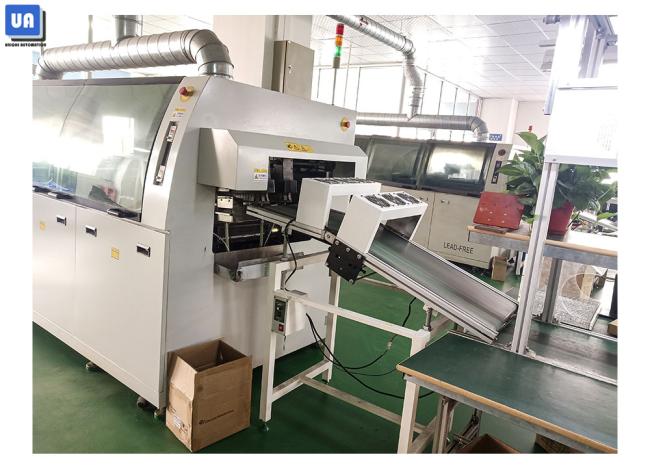

The Picture of Wave Soldering Machine
FAQ
Q1: Are you a trade company or manufacturer ?
We are the manufacturer of high precision SMT Equipment and have more than 10 years’ experience in this line. OEM & ODM service are available.
Q2: What is your delivery date?
The delivery date is about 20-30 working days after receive the payment.
Q3: Whether these products have quality assurance ?
We have strict QC and all products have 100% quality tested before delivery.
Q4 : What is your payment terms?
T/T, L/C, etc
Q5: If we come to your factory, you will provide the free training ?
Yes, warmly welcome you to visit our factory and we will arrange the free training for you.
Q6: Why choose UA ?
Experienced in design and manufacturing of SMT equipment, UA is one of the most professional solution providers in the SMT equipment market.
