8 Zones Reflow Oven Equipment Lead Free for SMT Production Line

Parameter of Reflow Oven RF-H800I Equipment

Introduction of Reflow Oven
1. Windows XP platform, user friendly interface and easily swap between bilingual of English & Chinese.
2. Digital control system adopted with PLC and Modular circuit. Achieving high stability and repeatibility.
3. Intelligent diagnostic system (IDS) provides trouble remind, fault alert, list-out and SPC data record features.
4. Zone temperature and blower speed can be controlled Independently, to meet the high-precision requirements.
5. Effective heating zone length with uniform heat distribution.
6. Forced air cooling system with efficient cooling speed suits most kinds of lead-free soldering application.
7. PLC and PID closed loop control to achieve high precision temperature control.
8. Standard 10 couples of top and bottom zones with patented air management structure, more efficient hot air convection and faster thermal compensation.
9. The rail track is dealt with hardening process to make it more reliable.
10. Manual adjusted process track width whereas providing option of automatic by SPG gear motor.
11. Computerized controlled rail chain lubrication structure.
12. Powerful software system can save all settings and data printout capability.
13. Flux removal unit meet with environmental protection requirement.
14. Nitrogen structure is an option.

Detailed picture of reflow oven 8 zones

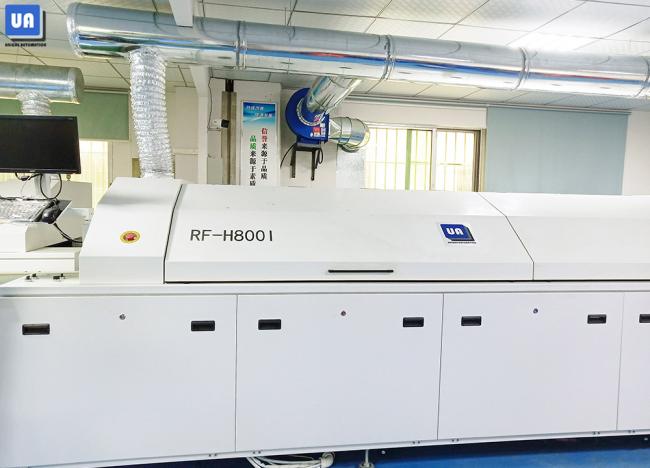

Photos of reflow oven RF-H800I

Reflow soldering parameter setting
(1) Click the "Parameter Setting" menu on the main window screen, and select the "Working Parameter Setting" command in the pop-up drop-down menu. The working parameter setting dialog box appears. Set "temperature setting", "upper limit", "lower limit" and "speed setting" as required.
(2) Click the "OK" button to display "Please confirm whether the data is correct", click the "Yes" button to return to the main window.
(3) Check whether the temperature and speed setting values displayed in the main window are the input values.
(4) Save the reflow soldering parameter setting file. ①Select the "Save" command in the "File" drop-down menu to display the "Save As" dialog box. ②Click the scroll bar with the mouse to select the location and file type to store the file, such as temperature parameter file. ③Enter the file name of the file to be stored, such as SG1 (solder paste 1), TBJ1 (sticker glue 1). ④ Click the "Save" button in the dialog box.
