Temperature Abnormal Alarm IR Curing Oven Aluminium Alloy Plate Air Cooling
Price:
USD 20000~150000
MOQ:
1unit
Delivery Time:
7 days
Brand:
UA
Product Description
IR Curing Oven :
Machine Specifications OF IR Curing Oven:
| Machine Specification | |||
| Model | MC-600 | Nozzle Plate | Aluminium Alloy |
| PCB width | 500mm | Conveyor speed | 0~2000mm／Min |
| Space Under PCB | 25±5mm | Heating zones | 3100mm |
| Weight | Apprx.:2100kg | Dimension | 4400*1400*1635mm |
| Exhaust capacity | 10m³/min×2 | Color | Grey |
| Control system | |||
| Electricity supply | 3P 380V/220V 50/60Hz | Temp. control range | Room temp.～200℃ |
| Total power | 50KW | Temp. control precision | ±1℃ |
| Start power | 22KW | Temp. control method | PID +SSR |
| Abnormal alarm | Temperature abnormal alarm | PCB temperature deviation | ±2℃ |
| Cooling method | Air cooling | Converyor height | 900±20mm |
| Warm up time | Apporx.5-15minute | Normal power | Apprx.12KW |
| Conveying system | |||

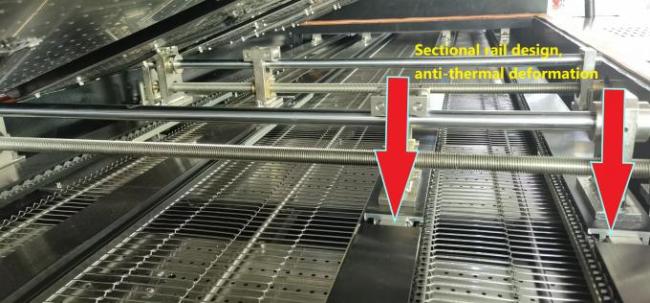

| Rail structure | 2 sectional rails | Fixed rail side | Front fixed |
| Max.Stove Temp | 300℃ | Conveying height | 750±20mm |
| PCB Max. width | 50-350mm | Conveying method | mesh+ chain |
| Component height | Top30mm/bottom25mm | Range width | 50~500mm |
| Conveying direction | Left to right | Lubrication | Automatic+Manually |
| Number Zones | Top6 Bottom6 | Conveyor motor | Taiwan motor |
Features OF IR Curing Oven:
● Mingpeng automation has been launching the latest research and developmentof the curing oven which is mainly used for the stress of reinforced material combination,resin curing and drying process.
●Total 8 zone design in the oven which allows heating and coolng zone in various combinations way.
●Automaticly balance the pressure in the oven to ensure the high temperature accuracy.
●Automatic lubrication and manually lubricatingare available.

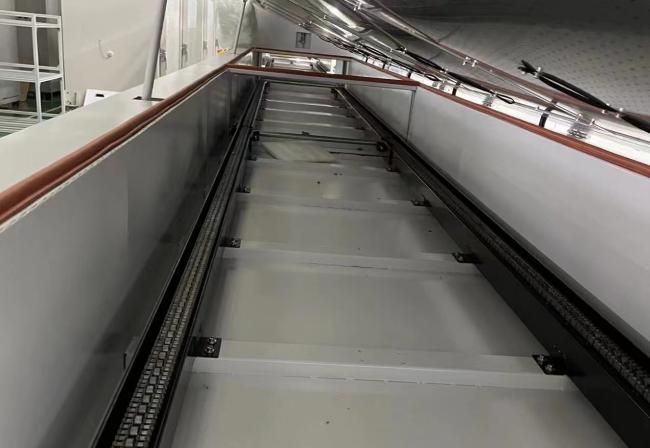

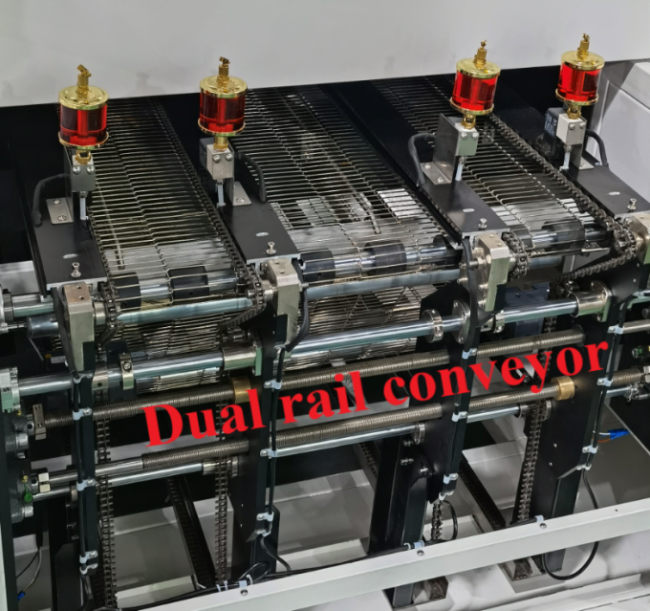

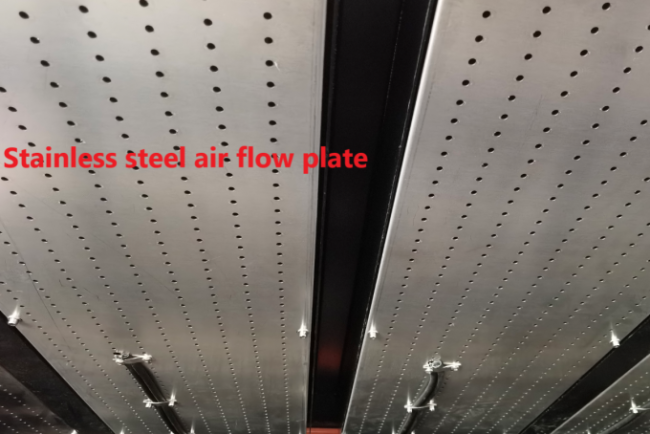

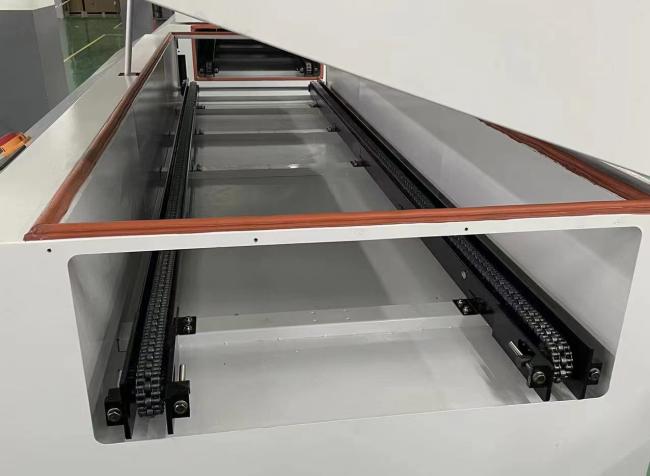

Detailed picture OF IR Curing Oven :
Packing method OF IR Curing Oven:
