20t Wing Van Truck 371hp Heavy Duty Cargo Van 10 Wheeler
HOWO 6*4 10 Wheeler Wingspan Van 20-25 Tons Side Unload Truck Wing Van Truck Philippines
1. HOWO 6*4 Wingspan Truck specifications
| Chassis Brand | SINOTRUK HOWO Wingspan Truck | |
| Engine | Fuel | Diesel |
| Model | WD615.47 | |
| Rated Power | 371( HP) | |
| Displacement | 9.726(L) | |
| Driving | Type | 6*4 |
| Dimension | Overall dimension | 10000*2550*3980 (mm) |
| Gross Vehicle Weight (GVW) |
16000(KG) | |
| Wheel base | 5600(mm) | |
| Wheel specification | 11.00R20,12.00-20,12.00R20 | |
| Front gauge | 1430 (mm) | |
| Rear Track | 2970 (mm) | |
| Van | Inner dimension | 7520*2420*2500(mm) |
|
Electric hydraulic lifting device is composed of a power unit.Controling button is used to lift the two wings 90 degrees. The power unit is 4 cylinder lifting box, four hydraulic double loop adsorption cylinder. |
||

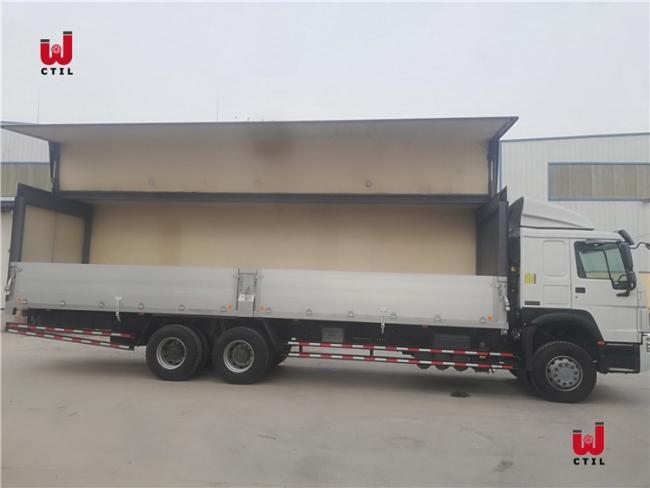

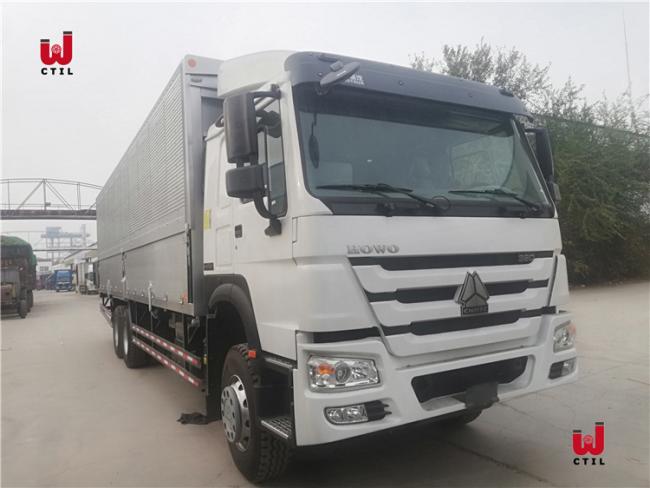

2. HOWO 10 Wheeler Wingspan Truck we manufactured
| 3. Other van trucks | |||
| 2Tons to 10tons |  |
Driving Model:4x2 Engine:65hp,90hp,110hp,115hp,130hp,160hp Gearbox: Manuel Transmission Tire:8.25,9.0,10.0 payload:3-15t Learn more>>> |
|
| 15tons to 25tons |  |
Cabin:HW76, Long Cab,with one bed Engine: 266hp,290hp,336hp Gearbox:Manual Transmission with 10 forwards and 2 reverses Tire:1200R20 Radial tire, 12R22.5Tubless tire Box Length:5.5-8.5m Learn more>>> |
|
| 25tons to 40tons |  |
Cabin: A7-W one sleeper
|
|
4. China Truck Workshop Gallery
5. China Truck Packing and Shipping
Packing: Nude packing after painting wax or according to your requirement.
Shipping: By bulk cargo carrier, RORO, Container
