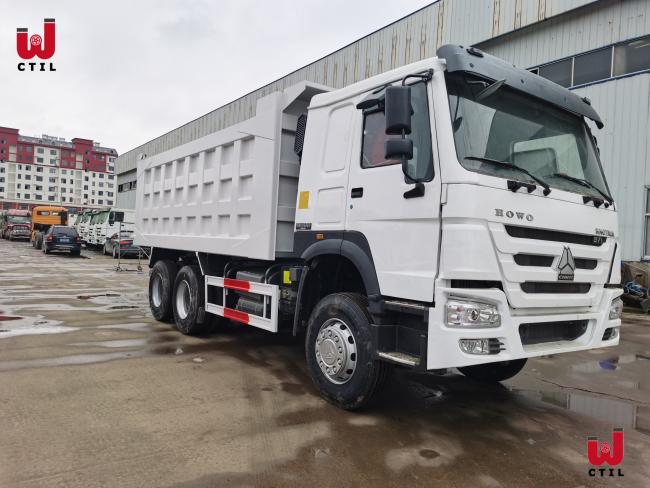

6X4 Used Sinotruk Howo Trucks 30T Tipper Second Hand Dump Truck
Sinotruk Used HOWO 6X4 30T Tipper Second hand Dumper Dump Truck
Our main Overseas Business Scope
- All types of brand new and used heavy duty truck and light duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service&Maintenance
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.),buses, trailers, including dump truck, tractor truck, concrete mixer truck, sprinkler truck,water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer,flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
This dump truck we have new and used one,You can choose according to your requirement!
1. Dump Truck Main Specifications:(Configuration can be changed as required)
| Truck Model | ZZ3257N3647, Left Hand Drive or Right Hand Drive model | ||
| Truck Brand | SINOTRUK -HOWO | ||
| Dimension(Lx W xH) | 8545x2496x3386 | ||
| Cargo body size (L*W*H, mm) | 5600x2300x1500 | ||
| Cargo body thickness(mm) | bottom:8mm, side:6mm, or customized as you required | ||
| Lift type of Carriage | Ventral lifting or front tipping | ||
| Approaching angle/Departure angle(°) | 19/26 | ||
| Overhang(front/rear) (mm) | 1500/1739 | ||
| Wheel base (mm) | 3625+1350 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 12290 | ||
| Loading Weight(kg) | 25000 | ||
| Fuel Tanker | 300L with locking fuel cap | ||
| Fuel consumption(L/100km) | 32 | ||
| Clutch | Single-plate dry clutch Φ430mm | ||

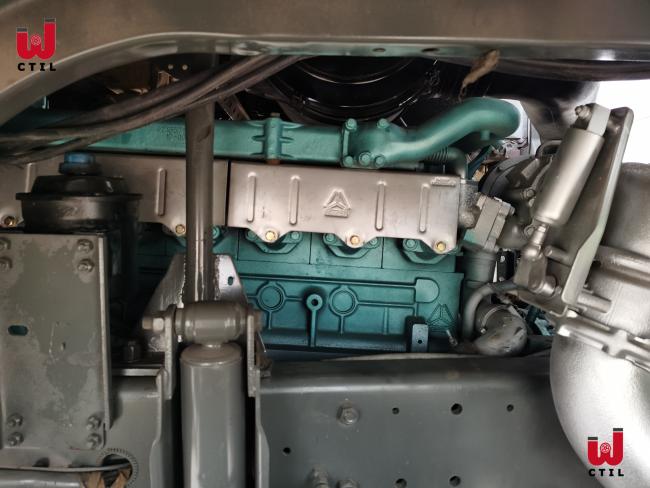

| Engine | Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , |
|
| Horse Power, | 371HP | ||
| Emission Standard | EURO II | ||
| Transmission | Model | HW 19710,10 forwards and 2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake |
spring energy, compressed air operating on rear wheels |
||
| Auxiliary brake | Engine exhaust brake | ||
| Steering system | Model | ZF8098/ZF8118 hydraulic steering with power assistance | |
| Front axle | HF9 | ||
| Rear axle | HC16 | ||
| Tire | 12.00R20, 12.00-20 | ||
| Electrical system | Operating voltage | 24V,negative grounded | |
| Starter | 24V,7.35KW | ||
| Alternator | 28V,1500W | ||
| Batteries | 2*12V.165Ah | ||
| Tips to build your truck body | ||
| Transport medium | Floor(mm) | Side(mm) |
| Soil or Stone | 8 | 4 |
| Construction Waste | 10 | 6 |
| Big Ore | 12 | 8 |
| Coal | 6 | 4 |
| clay | 8 | 4 |
| Grain or Chemical fertilizer | 6 | 4 |
Used trucks in our warehouse, waiting for customers coming to choose and delivery!
2.Our Factory brief Instruction
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.
3.Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO, flat rack
