China CCC Axle Truck Semi Trailers 40t Flatbed Tractor Trailer for sale

CCC Axle Truck Semi Trailers 40t Flatbed Tractor Trailer

Price Negotiable

Price: USD6000-10000/unit

MOQ: 1unit

Delivery Time: 30-45 days

Brand: CTIL

Product Description

China 40 Foot Feet Tandem Axle 50 Tons Flat bed Heavy Truck Semi Trailer

What is a flatbed trailer used for?

Flatbed trailers are often used to transport large construction equipment and other items that cannot be placed inside normal semi trucks. The driver is responsible for safely loading and unloading the flatbed trailer, while making sure the equipment is safe as well.

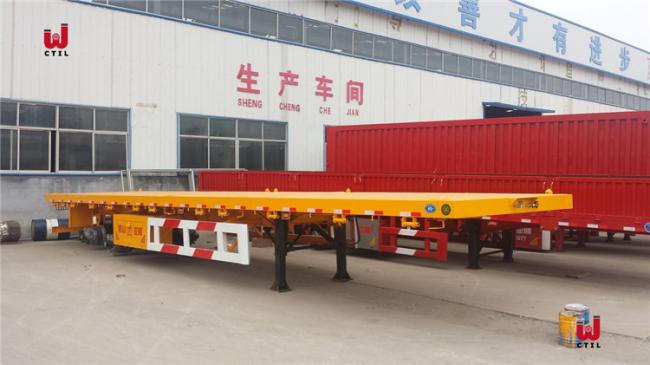

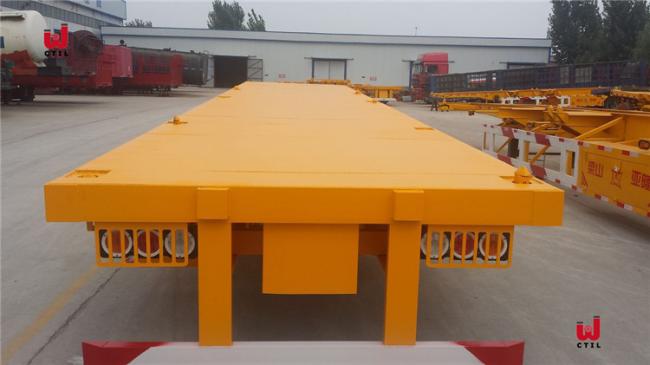

1. 40 Foot Heavy Duty Tandem Axle Flatbed Tractor Trailer Photos

2. Semi Truck flatbed trailer technological specifications
Overall Dimension		12400mmx2500mmx1650mm
Tare Weight		8200kg	Pay Load	50ton
Track		1840mm	Wheel base	7828+1600(mm)
Running Gear
Suspension		Mechanical suspension 10pieces thicken steel spring
Tires		12.00-20,12.00R20,12.00R22.5
Axles		FUWA, BPW axle, 13T capacity
Brakes		Dual lines pneumatic brake system; T30/30 air chamber; parking brake
Under Frame
Main Beam		I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam		Mild Alloy Q235
King Pin		Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled
Landing Gear		Single side operation or double side operation, Static capacity 28Ton
Twist Locks		12 twist locks
Flatbed Floor		Checkered sheet, thickness 3mm
Toolbox		1 tool box
Electrical & Paint
Lights & Reflectors	Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring	24V, 7 lines
Air/Elec. Connector	ISO standard air connector, 24V 7 pin plug socket
Paint	Sand blasting before painting, color upon request
