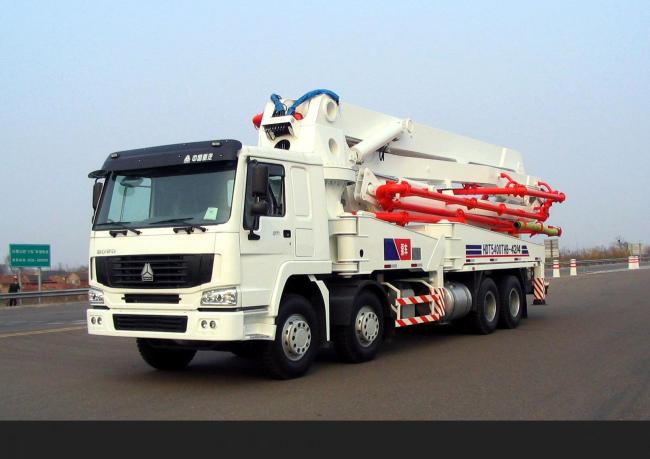

SINOTRUK HOWO 8X4 Chassis 42M Concrete Pump Truck with 371HP

1. 1. HOWO truck manufactures-SINOTRUK, founded in 1953, is the earliest heavy-duty vehicle manufacturer in China.

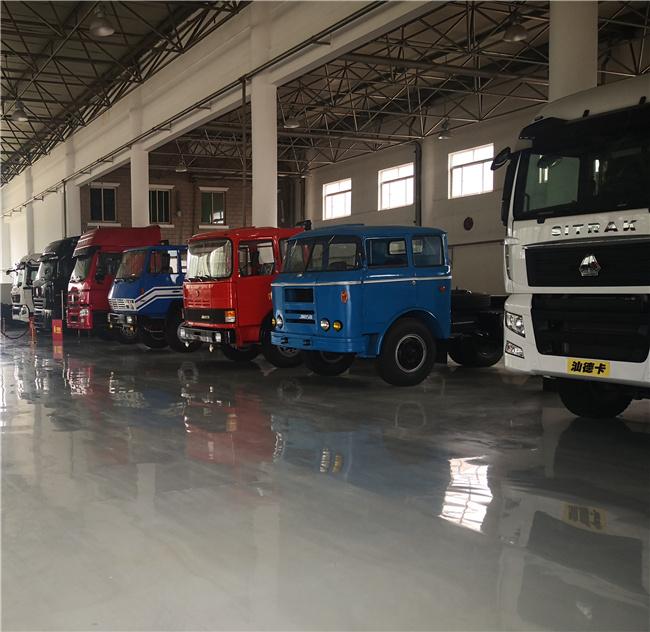

2. It once developed and manufactured China's first heavy-duty vehicle (the Yellow River JN150).

4. The concrete pump truck can be divided into large concrete pump truck and small concrete pump truck according to the length of arm frame.
   The concrete pump truck is modified on the chassis of the truck, which is fitted with a motion and power transmission, a pumping and stirring device, a cloth device and other auxiliary devices.
   The driving force of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the dynamic split box, and the hydraulic pump pushes the piston to drive the concrete pump. Then the concrete is transported to a certain height and distance by using the cloth rod and conveying pipe on the pump.
   In addition to driving the pump truck, the engine of the concrete pump is also used to drive the pumping mechanism, the stirring mechanism and the cloth mechanism.
   The power of each working device of the concrete pump truck originates from the automobile engine.
   When the concrete pump truck works, the power of the automobile engine passes through the gearbox to the compartment, then passes through the transfer box to each hydraulic pump or the chassis rear axle.
   When the driver issued a switch to the pump position of the instructions, pneumatic solenoid valve control on the transfer box on the cylinder to promote the fork, fork and then push the separation gear to switch to the pump position, while cutting the power to the rear axle, so that the car in the state of the vehicle. Conversely, switch to the driving position. Now the control of the pump is basically realized by the remote controller.

1.

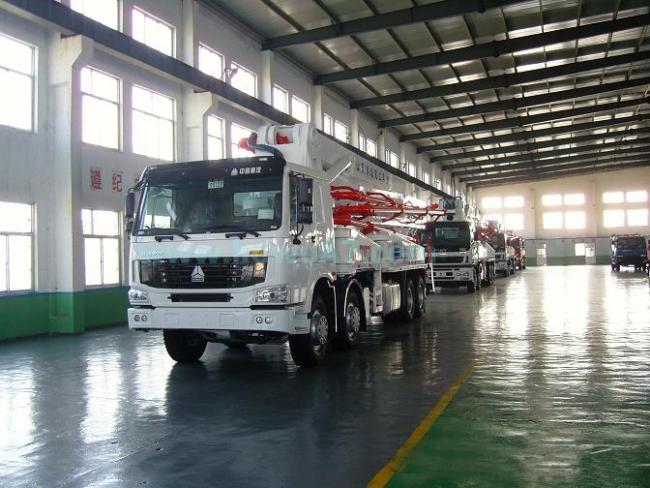

2. 2. SINOTRUK HOWO 6X4 Chassis 42M Concrete Pump Truck

   HOWO 37M Concrete Pump Truck
   Chassis Model	SINOTRUK HOWO ZZ5437N5067W
   Engine	WD615.47, 371hp
   Drive Model	8x4
   Fuel Type/Emission	Diesel , Euro II
   Transmission	HW19710,10 forward&2 rear
   Steering	ZF hydraulic steering with power assistance
   Front axle	HF7,7tons×2 loading capacity
   Rear axle	ST16,16×2 tons load capacity
   Cab	HW76 cab, One sleeper, With air conditioner
   Rim/Tires	12.00R20 Radial Tire,13 pieces including 1 spare tyre
   Fuel Tank	400L
   Boom arm length	37M
   Slewing ring	Italy LALEONESSA SPA Reducer
   Reducer	Italy REGGIANA REDUTTORI
   Proportional multi-way valve	Germany HAWE
   Hydraulic pumps, valves	Germany Rexroth
   Transfer case	Germany STEIBEL
   Oil cooler	United States CRADLE FLUID
   Wireless and wired remote	Germany HBC
   Electrical System	China, LG ,Omron, Schneider,Siemens

3.

4. 3. Vehicles Experiments

   We insist “every step counts for success”, so every vehicle will be made overall testing to guarantees its competitive. CNHTC owns professional road testing grounds for heavy trucks, so every new developed product will be tested by extremely strict professional experiments during development process.
