0.35W 28100rpm Toothbrush Vibrating Motor 3.7V 6mm Coreless Motor
Price:
Negotiated The Price
MOQ:
10
Delivery Time:
7-10 working days
Brand:
SECORE
Product Description
3.7V 6mm mini Coreless Motor, Micro Vibrating Toothbrush Motor, Facial Cleanser Motor
Key Specifications :
| CL0612-1 | CL0612-2 | ||
| Rated voltage | V | 3.7 | 3.7 |
| No load speed | rpm | 28000 | 63000 |
| No load current | A | 0.041 | 0.11 |
| Speed Constant | rmp/V | 7620 | 16837 |
| Torque constant | g.cm/A | 12 | 5.5 |
| Output ( max efficiency ) | W | 0.35 | 0.89 |
| Torque ( max efficiency ) | g.cm | 1.445 | 1.621 |
| Speed ( max efficiency ) | rpm | 22610 | 51720 |
| Current ( max efficiency ) | A | 0.172 | 0.371 |
| Stall current | A | 0.64 | 1.9 |
| Stall Torque | g.cm | 9.2 | 9.7 |
| Max efficiency | % | 57 | 66 |
| Weight | g | 1.5 | 1.5 |

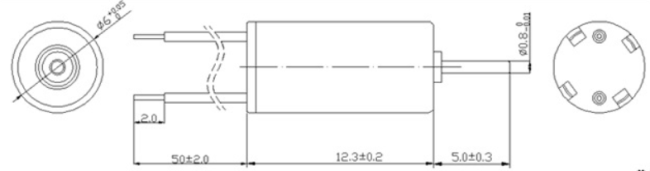

Product dimensions:

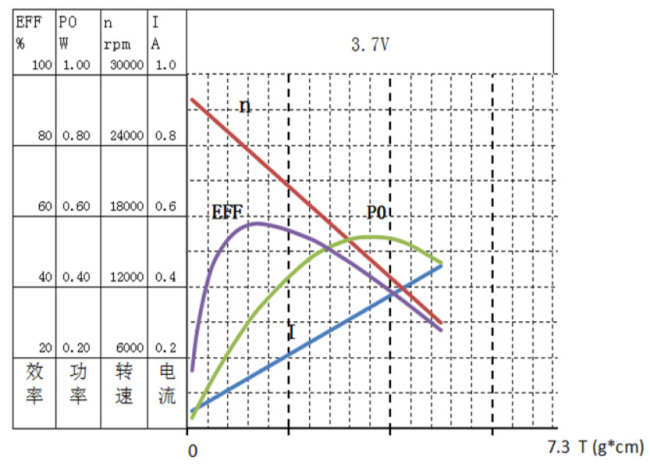

Performance curve:
Typical Application:
