T1-T5 Food Grade And Industrial Grade Tinplate Tin Plate Sheet Tinplate Coil
Price:
negotiation
MOQ:
3Tons
Delivery Time:
5-15days depend on the quantity
Brand:
silk
Product Description
Specification
| Thickness | 0.14 - 0.50mm | ||
| Width | 600 - 1050mm | ||
| Length | As per customer requirement | ||
| Steel Type | MR, SPCC | ||
| Annealing | BA (Batch Annealed), CA (Continuously Annealed) | ||
| Standard | EN10202, JIS G3303, ASTM A623/ A624/ A625/ A626 | ||
| Temper | T1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10 | ||
| Coating for ETP | Euqally coated (1.1/1.1, 2.0/2.0/ 2.8/2.8/ 5.6/5.6, 8.4/8.4, 11.2/ 11.2) Differetially coated (2.0/1.1, 2.8/1.1, 5.6/1.1, 5.6/2.8, 8.4/2.8, 8.4/5.6, 11.2/2.8, 11.2/5.6, 11.2/8.4, 15.1/5.6) |
||
| Coating for TFS | Metal Chromium Layer: 50-150mg/m², Chromium Oxide Layer: 5-35 mg/m² | ||
| Delivery time | 20-45 days | ||
| Supply Capacity | 8,000MT per month | ||
| Shape | Coil, Sheet |
| Coil ID | 420mm or 508mm |
| Coil Weight | 3-8MT or 6-12MT |
| Bundle Weight | 2MT Max |
| Surface | Bright, Stone, Fine Stone, Sliver, Matt |
| Post treatment | Passivation, Dos Oil |

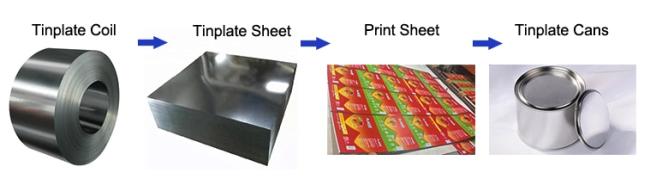

| Processing service | Cut to sheet, scroll cut, lacquer and print service |
| Application | A. Food Cans (Beverage Cans, Milk Cans, Fruit Cans, Tomato Cans, Edible oil etc. ) B. Industrial Cans (Paint Cans, Chemical Cans, Lube containers) C. General Line Packaging (Aerosol Can, Gift Cans, Cookies Cans, Stationery Box etc.) |
| MOQ | 25MT per size |
| Delivery Tolerance | +/-10% |
| Packing | Standard seaworthy export packing (horizontal or vertical) |
Type of Steel
| MR | It contains few residual minor constituents and has good corrosion resistance. It is widely used for the applications of containers. |
||||
| L | It contains particularly few residual minor constituents as Cu, Ni, Cr, Mn. It is suitable for the materials of containers requiring improved corrosion resistance. |
||||
| D | It is an aluminum killed steel. It is suitable for the applications, that bear deep drawing or other workings which may produce Luder's lines patterns. |
||||
| Product finish | Steel base | Product | Flow-melted | Surface roughness | Remark |
| Ra (μm) | |||||
| Bright | smooth | Tinplate | Yes | ≤ 0.35 | Note 1: Double reduced product is only supplied as stone finish. Note 2: Sub-classfied based on the surface finishing of the blackplate. Note 3: The appearance is governed by: a) the surface characteristics of the steel base which principally result from controlled preparation of the work rolls used during the final stages of temper rolling; b) the mass of the coating applied; and c) whether the tin layer is flow-melted or unflow-melted. |
| Fine stone | fine stone | Tinplate | Yes | 0.25 - 0.45 | |
| Stone | stone | Tinplate | Yes | 0.35 - 0.60 | |
| Silver | shot blast | Tinplate | Yes | ≥ 0.90 | |
| Matt | shot blast | Tinplate | No | Various | |
| Fine stone | fine stone | TFS/ ECCS | - | 0.25 - 0.45 | |
| Stone | stone | TFS/ ECCS | - | 0.35 - 0.60 |
| Remark | Temper Grade | Typical Application | |||
| JIS G3303 | ASTM A623M ASTM A624M ASTM A625M ASTM A626M ASTM A650M |
EN10202 | |||
| Single Reduced (SR) |
T-1 | T49 | TS230 | Drawn and ironed cans, nozzles, spouts, closures, mounting cup, oil filter. | |
| T-2 | T53 | TS245 | Ring and plugs, dome tops, closures, shallow drawn parts. Drawing can, body, end for large can. |
||
| T-2.5 | T54 | TS260 | Battery shells, small can ends and bodies | ||
| T-3 | T57 | TS275 | Top and bottom of cans, can ends and bodies, large diameter closures, crown caps. | ||
| T-3.5 | T59 | TS290 | General use, pail, 18L, 4L | ||
| T-4 | T61 | TH415 | Can bodies and ends, crown caps, closures. Body and end for small can. |
||
| T-5 | T65 | TH435 | Can ends and bodies requiring intensity. Body and end for small can. |
||
| Double Reduced (DR) |
DR-7M | T71 | TH520 | DRD bodies, dome, Lug cap & 3 piece bodies | |
| DR-8 | T72 | TH550 | DRD bodies, end, Lug cap & 3 piece bodies | ||
| DR-8M | T73 | TH580 | |||
| DR-9 | T75 | TH620 | DRD bodies, Lug cap & 3 piece bodies Thinner guage body, end, DRD cans, caps. |
||
| DR-9M | T76 | - | |||
| DR-10 | - | - | DRD bodies, Lug cap & 3 piece bodies Thinner guage body, end, DRD cans, caps. |
||
