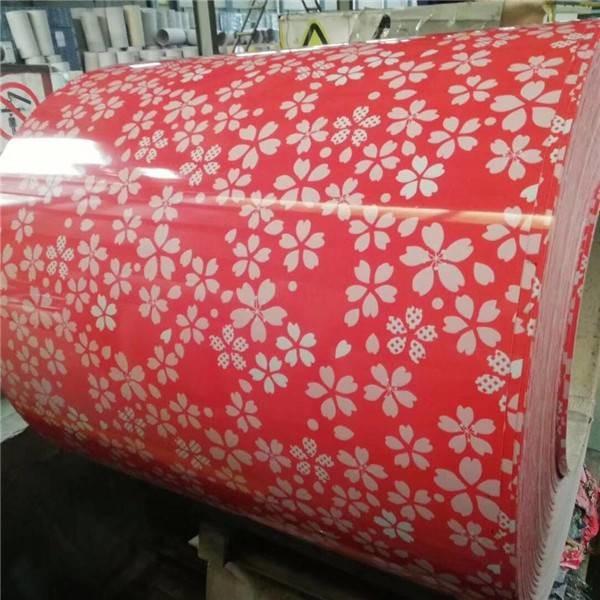

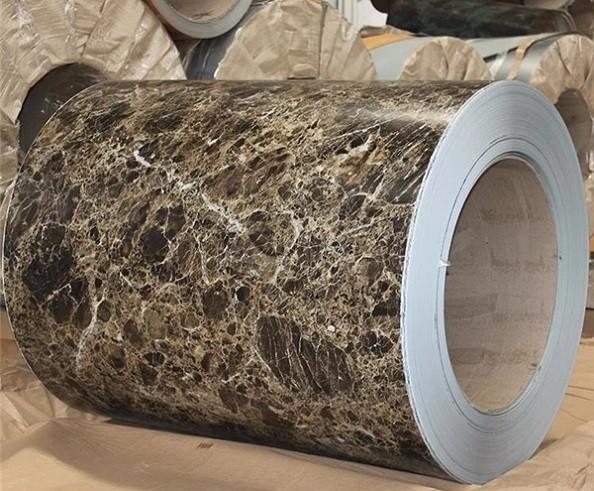

Sgcc Galvanized Steel Coil Color Coating / Marble Color / Wood / Flower Design
Color Coating / Marble Color / Wood / Flower Design Galvanised Steel Coil
Product Specification:
PPGI has a higher finish and looks more beautiful. PPGL steel coils have a higher finish than PPGI steel coils.PPGL has higher corrosion resistance. If there are corrosion spots, the corrosion will spread on the PPGL board, but it will not spread on the PPGI board.
PPGI are used in: daily necessities, housings of household appliances (air conditioners, washing machines, etc.), ventilation ducts, outdoor billboards, retaining walls, etc., equipment hoppers, various stamping parts, and so on.
The coating composition of PPGI usually refers to the uniform zinc element.
The coating composition of PPGL is usually 55% aluminum, 43.4% zinc, and 1.6% trace elements. Since the surface of the aluminum-zinc plate is an alloy plating layer, the chemical performance is much more stable than that of the base plate.
|
Product name
|
prepainted steel coil
|
|
Stansard
|
AISI,ASTM,BS,DIN,GB,JIS
|
|
Material Grade
|
SGCC/CGCC/DX51D+Z
|
|
Place of Origin
|
Shandong,China(Mainland)
|
|
Surface Treament
|
Coated
|
|
Coating Material
|
PE,SMP,HDP,PVDF
|
|
Color
|
All RAL colors or customers sampels color
|
|
Top Coating Thickness
|
15μm-25μm
|
|
Back Coated Thickness
|
5μm-20μm
|
|
Thickness
|
0.12-1.20mm
|
|
Width
|
600-1500mm
|
|
Coil ID
|
508/610mm
|
|
Coil Weight
|
3-8 tons
|
|
Packaging
|
Standard export seaworthy packing
|
|
Transport
|
Ocean Shipping
|
|
Port
|
Tianjin/Qingdao
|
|
Delivery Time
|
15-20 days after receive deposit
|
|
Payment
|
30% T/T for deposit and the balance against the copy of BL
|
Chemical Composition :
| GRADE | C | Si | Mn | P | S | Ti |
| SGCC/DX51D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| DX52D+Z | ≤0.10 | ≤0.50 | ≤0.60 | ≤0.10 | ≤0.030 | ≤0.020 |
| SGCD/DX53D+Z | ≤0.10 | ≤0.30 | ≤0.50 | ≤0.05 | ≤0.030 | ≤0.020 |
| GRADE | Yield Strength MPa | Tensile Strength MPa | Elongation % | |||
| SGCC(DX51D+Z) | ≥205 | ≥270 | - | |||
| SGCD(DX53D+Z) | - | ≥270 | 38 | |||
| SGCE(DX54D+Z) | - | ≥270 | 4 | |||
Packing And Shipping:
Mill standard export seaworthy package with inner sleeve and with 4 eye bands 3 circumferential bands in steel,galvanized metal fluted rings on inner and outer edges,galvanized metal & water proof paper wall protection disk around circumferences.
FAQ:
Q1: Are you factory or trading company?
A: We are manufacturer, sincerely welcome you visit our factory.
Q2: Can you guarantee your galvanized steel coil quality?
A: Best quality is our principle all the time. We have 2 times quality test before delivery.
Our vision : to be world-class professional,reliable and outstanding steel supplier.
Q3: What is your MOQ?
A: We welcome your trial order MOQ 25 T to be stuffed in 1*20GP.
Large quantity can reduce your cost .
Q5: What is your main market ?
A: Galvanized steel coils are mainly exported to Afirca ,Southeast Asia, the Middle East,Central
Asia Europe, North & South America and other countries and regions.
