JIS G3303 Standard Tin Plate 2.8/2.8 Coating Thickness Bright Finish Tin Free Steel
Price:
Negotiable
MOQ:
3Tons
Delivery Time:
5-15days depend on the quantity
Brand:
silk
Product Description
|
Thickness
|
0.14 - 0.50mm
|
||
|
Width
|
600 - 1050mm
|
||
|
Length
|
As per customer requirement
|
||
|
Steel Type
|
MR, SPCC
|
||
|
Annealing
|
BA (Batch Annealed), CA (Continuously Annealed)
|
||
|
Standard
|
EN10202, JIS G3303, ASTM A623/ A624/ A625/ A626
|
||
|
Temper
|
T1, T2, T2.5, T3, T3.5, T4, T5, DR7, DR8, DR8M, DR9, DR9M, DR10
|
||
|
Coating for ETP
|
Euqally coated (1.1/1.1, 2.0/2.0/ 2.8/2.8/ 5.6/5.6, 8.4/8.4, 11.2/ 11.2)
Differetially coated (2.0/1.1, 2.8/1.1, 5.6/1.1, 5.6/2.8, 8.4/2.8, 8.4/5.6, 11.2/2.8, 11.2/5.6, 11.2/8.4, 15.1/5.6) |
||
|
Coating for TFS
|
Metal Chromium Layer: 50-150mg/m2, Chromium Oxide Layer: 5-35 mg/m2
|
||
|
Delivery time
|
20-45 days
|
||
|
Supply Capacity
|
8,000MT per month
|
||
|
Shape
|
Coil, Sheet
|
|
Coil ID
|
420mm or 508mm
|
|
Coil Weight
|
3-8MT or 6-12MT
|
|
Bundle Weight
|
2MT Max
|
|
Surface
|
Bright, Stone, Fine Stone, Sliver, Matt
|
|
Post treatment
|
Passivation, Dos Oil
|
|
Processing service
|
Cut to sheet, scroll cut, lacquer and print service
|
|
Application
|
A. Food Cans (Beverage Cans, Milk Cans, Fruit Cans, Tomato Cans, Edible oil etc. )
B. Industrial Cans (Paint Cans, Chemical Cans, Lube containers) C. General Line Packaging (Aerosol Can, Gift Cans, Cookies Cans, Stationery Box etc.) |
|
MOQ
|
25MT per size
|
|
Delivery Tolerance
|
+/-10%
|
|

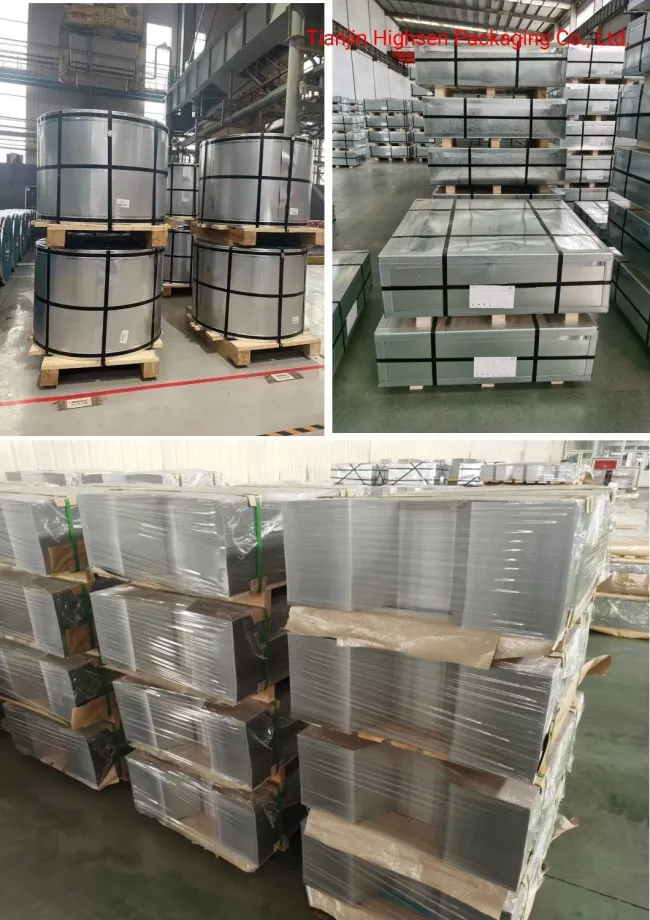

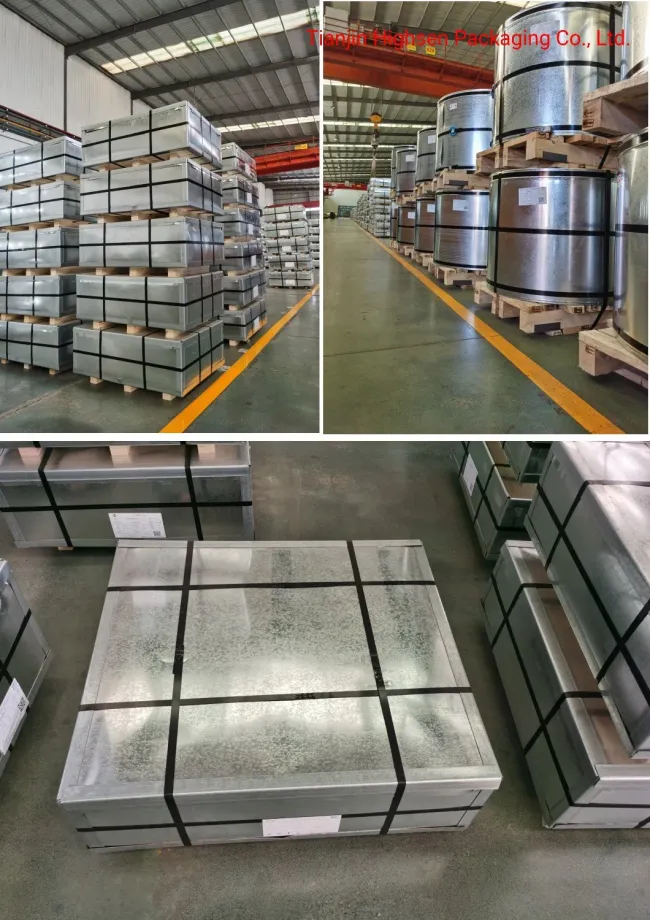

Packing
|
Standard seaworthy export packing (horizontal or vertical)
|
Type of Steel
| MR | It contains few residual minor constituents and has good corrosion resistance. It is widely used for the applications of containers. |
||||
| L | It contains particularly few residual minor constituents as Cu, Ni, Cr, Mn. It is suitable for the materials of containers requiring improved corrosion resistance. |
||||
| D | It is an aluminum killed steel. It is suitable for the applications, that bear deep drawing or other workings which may produce Luder's lines patterns. |
||||
Surface finish
| Product finish | Steel base | Product | Flow-melted | Surface roughness | Remark |
| Ra (μm) | |||||
| Bright | smooth | Tinplate | Yes | ≤ 0.35 | Note 1: Double reduced product is only supplied as stone finish. Note 2: Sub-classfied based on the surface finishing of the blackplate. Note 3: The appearance is governed by: a) the surface characteristics of the steel base which principally result from controlled preparation of the work rolls used during the final stages of temper rolling; b) the mass of the coating applied; and c) whether the tin layer is flow-melted or unflow-melted. |
| Fine stone | fine stone | Tinplate | Yes | 0.25 - 0.45 | |
| Stone | stone | Tinplate | Yes | 0.35 - 0.60 | |
| Silver | shot blast | Tinplate | Yes | ≥ 0.90 | |
| Matt | shot blast | Tinplate | No | Various | |
| Fine stone | fine stone | TFS/ ECCS | - | 0.25 - 0.45 | |
| Stone | stone | TFS/ ECCS | - | 0.35 - 0.60 |
