Vandal Proof IK10 2 Ports Gigabit Waterproof PoE Extender IP67 30 / 60 / 90W
2 Ports Gigabit Waterproof PoE Extender 30/60/90W
Technical Parameters
| Standard | IEEE802.3, IEEE802.3u, IEEE802.3ab, , IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3bt |
| Port |
PoE in port:1 x 10/100/1000Mbps RJ45 port PoE out port : 2 x 10/100/1000Mbps RJ45 port |
| Network Media(Cable) |
10BASE-T: UTP category 3, 4, 5 cable (≤100m) 100BASE-TX: UTP category 5, 5e cable (≤100m) 1000BASE-TX: UTP category5e cable (≤100m) |
| LED | LAN |
| PoE Standard | IEEE802.3af/at/bt |
| Dimensions (L*W*H) | 150*73*44MM |
| RJ45 PoE |
PoE in port: Anode1/2 Cathode3/6 or Anode4/5 Cathode7/8 PoE out port: Anode1/2 Cathode3/6 |
| PoE port | 2 |
| Power Supply | PoE |
| PD port input | 95W Max |
| PoE Power Output | Per port 48-55V DC Max.30W |
| Operating Temperature | -20°C ~ 60 °C |
| Storage Temperature | -40 °C ~ 80 °C |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
| Surge Protection | Differential mode±4KV, Common mode±6KV |
| MTBF | >50000 hour |
| Electrostatic standard | Contact 6KV, air 8KV |
| Weather Rating | IP67 |
| Vandal Proof | IK10 |
Product Description:

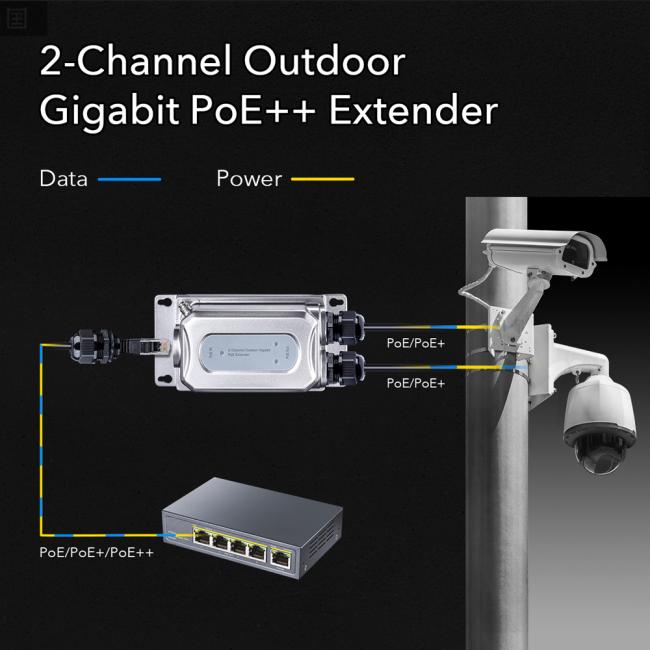

2 Ports Gigabit Waterproof PoE Extender is a Gigabit IP67 waterproof PoE extender independently developed by our company. It supports one RJ45 (PD) port in and 60W input (IEEE802.3bt). Two ports have PSE function, each supporting up to 30W output, without configuration, plug and play.
Professional room shell design, adapted to various harsh environments, with high stability, reliability, industrial level, wide temperature. The whole machine does not need power adapter, so it is convenient for harsh outdoor environment, reliable and convenient power for outdoor work AP, cameras etc.
Product Features
- 1. Complies with IEEE802.3af/at/bt Standard;

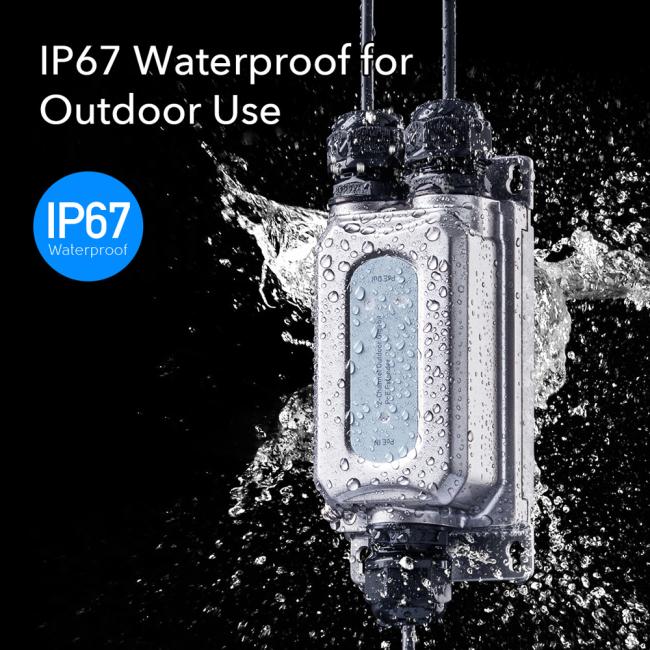

- 2. Metal shell, protection level IP67, IK10 vandal proof;
- 3. Complete unit does not require power adapter;
- 4. 60W PD Input, Two PSE output;
- 5. Data and power carried over the same cable;
- 6. Complete unit does not require power adapter;
- 7. Support Plug-and-play for the devices without any configuration;
- 8. Support 10/100/1000Mbps data transmission;
- 9. 10/100/1000Mbps data transmission and PoE power supply distance up to 100M;
- 10. operating temperature: -20°C~60°C;
- 11. It's ideal for harsh outdoor environment.
Product picture

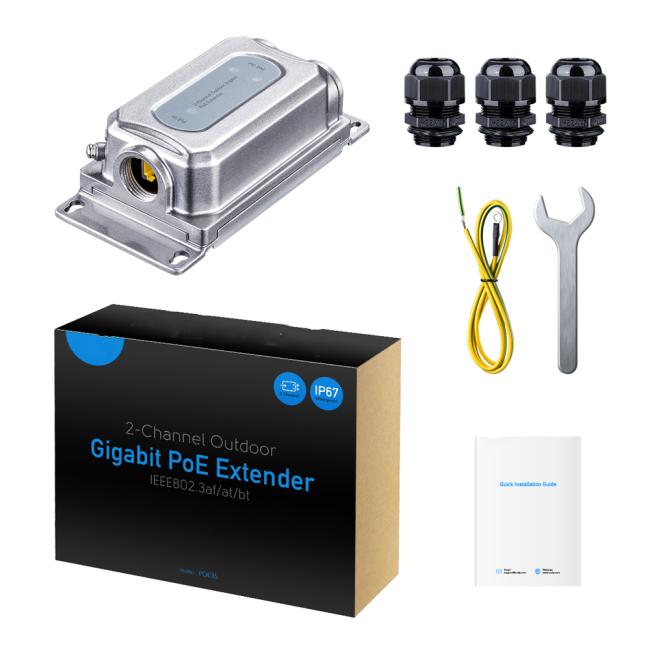

Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
