16+2+1 POE Ethernet Switch 16 POE And 2 RJ45 And 1 SFP Ports
16+2+1 POE Switch 16 10/100Mbps POE and 2 10/100/1000Mbps RJ45 and 1 10/100/1000Mbps SFP Ports
Main Advantages of the POE Switch
1. Support 100M or 250M transmission distance
2. Support VLAN to inhibit network storm, POE Watchdog
3. Surge 4KV, ESD 8KV
Technical Parameter
| Product information | describe | |
| Power information | Power supply mode | External power adapter |
| Voltage range | DC48V-57V | |
| network information | Network port | 1-16 downlink POE port: 10/100Mbps |
|
2*UPLINK RJ45 ports:10/100/1000Mbps;
1 10/100/1000Mbps SFP Slot |
||
| transmission distance | 1-16 downlink RJ 45ports :100m(100Mbps ) 250m(10Mbps ) | |
| 2*UPLINK RJ45 ports:0-100m | ||
| Transmission medium | Cat 5 and above unshielded twisted pairs | |
| Network standard | IEEE 802.3/802.3u, IEEE 802.3x, IEEE 802.1p, IEEE 802.3az | |
| exchange capacity | 1.2Gbps | |
| Packet forwarding rate | 0.8928Mpps | |
| MAC Address Capacity | 2K | |
| POE information | POE stand | IEEE802.3af/at |
| POE type | End-to-end spanning method(1/2+,3/6-) | |
| POEPort characteristics | The output power of the port is 15.4W/30W and the total power is 65W/120W. | |
| Status light | Power lamp | The red light is on, representing normal work. |
| Network Indicator | Green light, on behalf of Link/act working normally | |
| POE indicator light | Yellow light flashes, representing POE working normally | |
| Operating environment | working temperature | 0℃～55℃ |
| Storage temperature | -20℃~70℃ | |
| Humidity (no condensation) | 20~95% | |
Product Introduction
POE power switches support IEEE802.3af/at Ethernet power supply standard. The power supply distance is 100 meters and only supplies power to 802.3af/at terminal equipment. Therefore, there is no need to worry about damage to private standard POE or non-POE equipment. In addition, when the POE device is disconnected, it will stop power supply. Simple and reliable design, automatic identification of POE requirements, duplex and use of AutoUplink-TM type of network.
Features
1. Meet IEEE802.3 10Base-T and ie802.3u 100Base-T Ethernet standards
2. Flow control mode: IEEE 802.3x standard is adopted for full duplex and back pressure standard is adopted for half duplex;
4. Ethernet port two-level lightning protection technology ensures product stability
5. Support fixed port VLAN (ieee802.1q1 VLAN)
6. The exchange mechanism of store and forward
7. All ports support line speed switching. Line speed can be achieved within 1536k frame length. Line speed switching is supported,
8. Imported chip, automatic cooling
9. With MAC address automatic learning, automatic update function;
10. 2 uplink 10 / 100Mbps adaptive ports are used for cascade or external network access platform;
11. The 16-port Poe Ethernet switch has 16 downlink 10 / 100Mbps adaptive Poe intelligent power supply ports, supports ieee802.3af/at power supply international standard, 12 + / 36 -, 15.4/25.5w power supply output by end bridging method;
12. Poe transmission with extended network extended signal mode, the network power switch can transmit up to 250m by itself
13. Support auto MDI / mdix;

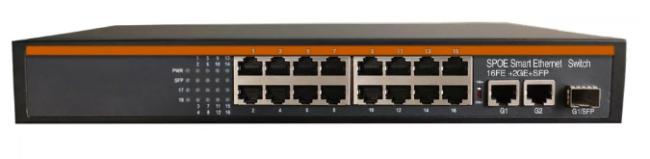

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
