AHD / CVI / TVI Analog Video Multiplexer 2CH 720 / 1080P With 2 BNC Over Coax Cable
Analog AHD/CVI/TVI Video Multiplexer 2CH 720/1080P with 2 BNC over Coax Cable
Technical parameter
| Application Standard | Follow AHD/TVI/CVI video agreement |
| Video input transmitter |
2CH AHD/TVI/CVI video signal protocol specification 1Vp-p Composite Output(75Ω/BNC) |
| Video output transmitter |
2CH AHD video signal protocol specification 1Vp-p Composite Output(75Ω/BNC) |
| resolution | 1080P |
| SNR | ＞60dB |
| Video bandwidth | Above 150MHz |
| power supply | DC12V1A |
| Transmission distance | 400m |
| Power consumption | ≤6W |
| Working temperature | -20℃～＋70℃ |
| Working humidity | 10％～90％ |
Product introduction
2ch AHD/TVI/CVI Video Multiplexer is to 2ch AHD video input signal for superposition on one coaxial cable for transmission. After reception the output of each channel video signal bandwidth, output impedance is the same with this video input signal format.
Product features
1. Internal uses the international famous semiconductor company dedicated AHD/TVI/CVI video amplifier IC, signal ring into the ring out of no distortion, no attenuation, stable, efficient and reliable.
2. Support AHD/TVI/CVI 1080P video format.
3. Support common 75-5 coax cable transmission without loss for more than 400 meters,long-distance real-time transmission；
4. Anti-interference ability is strong, in strong jamming environment,can ensure the transmission of high definition video display, no lost lock and lost frame.
5. Compatible in AHD/TVI/CVI video protocol specification of the mainstream manufacturers of coaxial high-definition video surveillance cameras, yuntai integration camera, high-speed ball type camera.

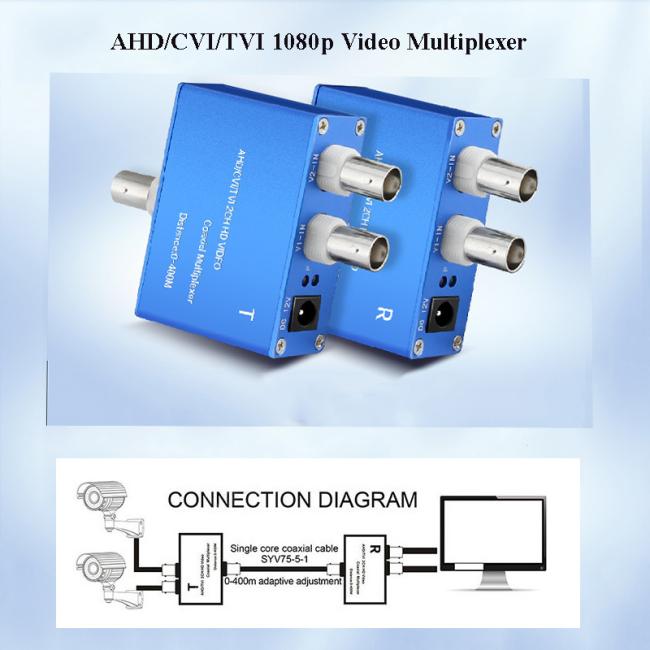

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
