1x10/100BASE-T To 2x100BASE-X SFP Fiber Ethernet Switch Converter With PSU
Ethernet Switch 1x10/100BASE-T To 2x100BASE-X SFP Media Converter With PSU
Technical parameters
| Hardware Specifications | |
| Copper Interface | 1 x 10/100BASE-T RJ45 TP |
| Auto-MDI/MDI-X, auto-negotiation | |
| Fiber Optic Interface | 2 x 100BASE-FX SFP interface. |
| Dimensions (W x D x H) | 71 x 94 x 26 mm |
| Weight | 200g |
| Power Requirements | AC 100-240V 50/60Hz 0.15A Max |
| Power Consumption / Dissipation | <3W |
| Network Cables | 10/100BASE-T: |
| Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) | |
| EIA/TIA-568 100-ohm STP (100 meters, max.) | |
| 100BASE-FX: | |
| 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to | |
| 2 kilometers (varying on SFP module) | |
| 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (varying on SFP module) | |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T |
| IEEE 802.3u 100Base-TX | |
| IEEE 802.3u 100Base-FX | |
| IEEE 802.3x Flow control | |
| Regulation Compliance | CE, RoHS and FCC |
| Environment | |
| Temperature | Operating: -20~70 degrees C |
| Storage: -20~70 degrees C | |
| Humidity | Operating: 5~95% (non-condensing) |
| Storage: 5~95% (non-condensing) | |
Product overview
Media Converter Switch provides 1 RJ45 and 2 SFP ports to support conversion between 10/100Base-T and 100Base-X networks. With the two SFP ports, the converter switch provides high reliability and flexibility to extend the media transmission distance up to 2km, 20km, or longer depending on the SFP fiber optical transceivers. It allows the two types of segment to connect easily, efficiently and inexpensively.
Product features
Ethernet Switch Advantages:
1-port 10/100BASE-T RJ45 with auto MDI / MDI-X function
2-port 100Base-FX SFP slots
Transfers data from 10/100Base-T copper to fiber interfaces
Supports auto-negotiation and 10/100Mbps half / full duplex
0°C to 50°C operating temperature range
Supporting low-time lag transmission
Built-in Power Supply
Extremely low power consumption (less than 3W), reliable and stable performance

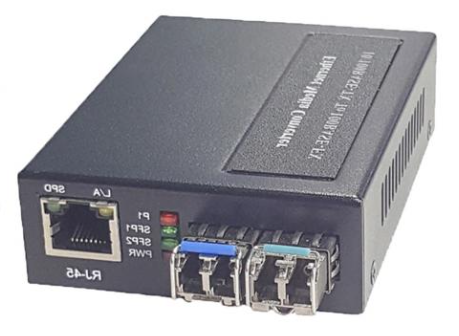

Product Picture
