20km LC 10G SFP+ Bidi 10km Simplex SFP Module WDM 1270nm / 1330nm
10Gbps SFP+ WDM 1270nm/1330nm 20km LC 10G SFP+ bidi Transceiver 10km Simplex SFP Module
Technical Parameters
| 9.95Gb/s to 11.3Gb/s bit rates |
| Hot-pluggable SFP+ footprint |
| Single LC for Bi-directional |
| Up to 10km |
| 1270/1330 WDM Filter |
| Uncooled 1270nm or 1330nm CWDM DFB Laser |
| Power dissipation <1.5W |
| No Reference Clock required |
| Built-in digital diagnostic functions |
| Temperature range 0°C to 70°C |
System Overview
Bi-directional 10Gb/s (SFP+) transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. They comply with 10GBASE-LR/LW Ethernet, SONET OC-192 / SDH and 10G Fiber Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the SFP+ MSA.
Product Features
² Supports 9.95Gb/s to 11.3Gb/s bit rates
² Hot-pluggable SFP+ footprint
² Single LC for Bi-directional Transmission
² Maximum link length of 10km
² Built-in 1270/1330 WDM Filter
² Uncooled 1270nm or 1330nm CWDM DFB Laser.
² Power dissipation <1.5W
² No Reference Clock required
² Built-in digital diagnostic functions
² Temperature range 0°C to 70°C
² Very low EMI and excellent ESD protection
² RoHS Compliant Part

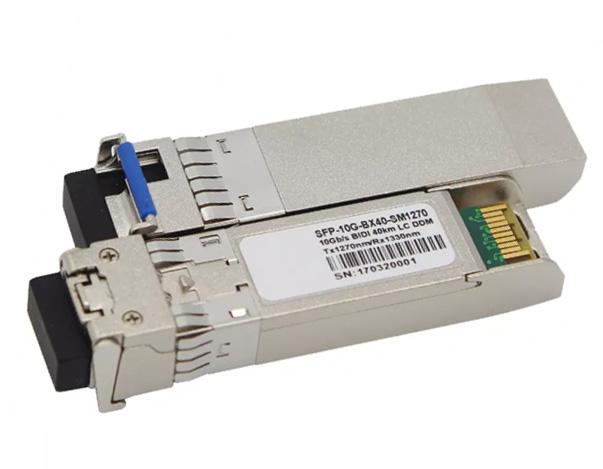

Product Pictures

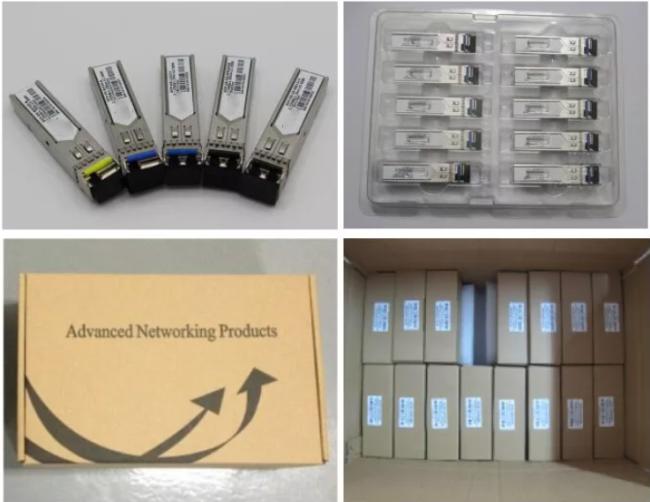

Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
