LC DOM 20KM / 10KM 40G SFP Module , 1270-1330nm 1310nm 40GBASE LR4 QSFP+
40G SFP Module QSFP+ 40GBASE 20KM/10KM LR4 QSFP+ 1270~1330nm(1310nm) LC SMF DOM
Technical Parameters
| 4 CWDM lanes MUX/DEMUX design |
| Up to 11.2Gbps per channel bandwidth |
| Aggregate bandwidth of > 40Gbps |
| Duplex LC connector |
| Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard |
| QSFP MSA compliant |
| Up to 10 km transmission |
| Up to 10 km transmission |
| Single +3.3V power supply operating |
| Temperature range 0°C to 70°C |
| RoHS Compliant Part |
System Overview
The design is compliant to the IEEE P802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

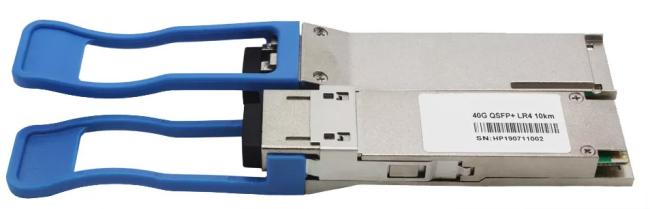

Product Pictures

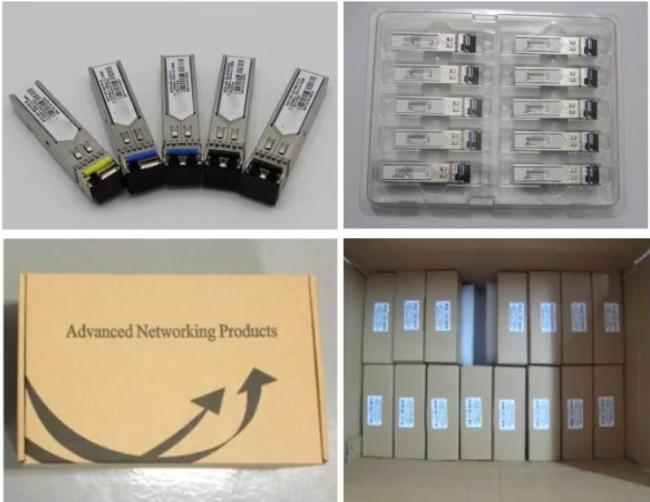

Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
