Multimode Dual Fiber Ethernet Media Converter 10/100Mbps 850nm 1310nm 2km
Ethernet Media Converter 10/100Mbps Multimode Dual Fiber 850nm/1310nm 2km ST Connector
Technical Parameters
| Network port | 1 10/100Base-T(X) adaptive RJ45 Ethernet ports |
| Optical port | 1 10/100Mbps optical port |
| Optical interface | ST |
| Transmission distance | 2km |
| Backplane processing capacity | 1G |
| MAC address table | 2K |
| MAX frame length | 2047bytes |
| Power Consumption | ≤3W |
| Transmitted power | -10~-2 dBm |
| Receiving sensitivity | ≤-24 dBm |
| Power | DC5V output (AC90~264V input) |
| Relative humidity | 5~90% |
| operating temperature | -20~70°C |
| Shell material | iron |
Product Overview
The fiber media transceiver is the dual fiber multimode 10/100Mbps fiber media converter, it automatically adapts to 10/100Mbps transmission rate and supplies 1 Ethernet ports to meet user requirements, the transmission distance can be 2km, it can easily realize the mainboard server, repeaters, network camera, the interconnection between the terminals and the terminal. Product performance is stable and reliable, the design meets Ethernet standard, and with lightning protection measures. Especially suitable for telecom, cable TV, railways, military, financial securities, customs, civil aviation, sea transport, electric power, water conservancy, oil field and other broadband data network and require high reliability of data transmission or set up IP data transmission field of private network.
Product features
◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the longest 2047bytes long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.
◆ With APC circuit, constant output optical power, large dynamic range;
◆ Gigabit fiber transmission, large capacity, easy to upgrade and expand;
◆ Advanced adaptive technology, use without on-site electrical or adjustment;
◆ Optical interface type: ST

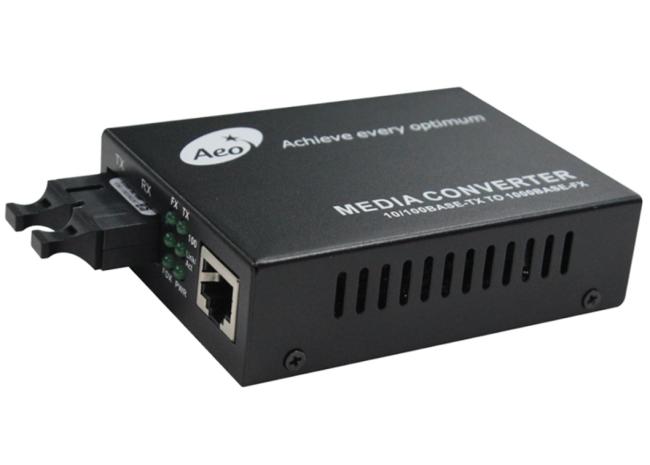

Product Pictures
Application Diagram
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
