Ip40 Ethernet POE Industrial Switch Gigabit 8 Port PoE And 2 Fiber Optical SFP Din Rail
Ethernet POE Industrial Switch Gigabit 8 port PoE and 2 Fiber Optical SFP Din-rail
Technical Parameters
|
Product Name
|
Gigabit Industrial Switch
|
|
Connector Type
|
8* 10/100/1000Base-T Ethernet ports + 2* 1000BASE-X fiber ports
|
|
Fiber Type
|
SM or MM
|
|
Bandwidth
|
20.0Gbps
|
|
IEEE Ethernet Standards
|
IEEE802.3, IEEE802.3u, IEEE 802.1ab,IEEE 802.3x, IEEE 802.3ad,IEEE 802.3z
|
|
Installation method
|
Card rail installation
|
|
PoE(Optional)
|
Standard IEEE802.3af/at
PSE Type End-span Power Pin Assignment 1 / 2 (+), 3 / 6 (-) or 4 / 5 (+), 7 / 8 (-) Power Output Each port up to 30W |
|
Protection Level |
Ip40
|
|
Application
|
intelligent transportation, outdoor surveillance, industrial networks
|
|
Dimension (W*L*H)
|
158mm *118mm * 42mm
|
|
Certification
|
CE,ROHS,FCC
|
System Overview
Industrial Ethernet switch,with 8*10/100/1000M Ethernet ports and 2x 1000M SFP port, Users can select different optical modules according to their needs, such as multi-mode dual fiber and single-mode dual fiber, single-mode single fiber, etc.
Product Features
l8 Port 10/100/1000Mbps RJ45 with Auto Uplink , 2 port 1000Mbps SFP Slot
lAutomatic MAC address learning and aging
lAutomatically support IGMP (Multicasting)
l10/100/1000Mbps Auto-negotiation , auto-MDI-MDI-X
lLED indicators for monitoring power/link/activity
lSupports 10/100/1000Mbps-Full/Half-duplex
lSupports Wall-mount and DIN-Rail installation for lightning protection
lSupports Daisy-Chain connection
lSupports Broadcast Storm Control
lSupports Relay output for power failure
lSuper lightening protection, IP40 protection.
lExcellent heat elimination without cooling fan.
lRedundant dual DC power inputs.
lRedundant Power Inputs
lApply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
lHarsh industrial environment or higher requirement
l-45ˇ-85ˇ operating temperature range

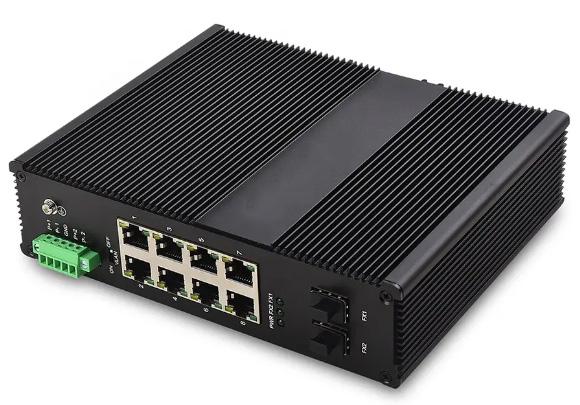

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
