Industrial L2+ Managed Gigabit POE Switch With 8 POE And 8 SFP Ports
SFP Fiber Switch Industrial L2+ Managed Gigabit PoE Switch with 8 PoE And 8 SFP Ports
Technical Parameters
| Power Supply | 44~ 57 VDC/ 3A(MAX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at |
| Ports | 8×10/100/1000Mbps RJ45 ports+8×SFP ports |
| Indicators | Speed 1000M (green), network Indicator: Link (yellow), SFP Indicator: L/A (green) |
| Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/ MDI-X adaptive |
| SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module. |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 165.5 mm *117.5 mm *52.1 mm |
| PoE port | 8 802.3at/af standard POE |
| Max / Average Power Port | 30W per port |
| Power Consumption | Standby:<10W(NOT PoE);Full load:<250W(with PoE) |
| MAC Address Table | 8K |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.808Mpps |
| Packet Buffer | 4Mbit |
| Net /Gross Weight | <1.2kg / <1.5kg |
| Warranty | 3 years , lifelong maintenance |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
System Overview
Gigabit managed industrial PoE switch. It has 8*10/100/1000M PoE ports and 8*100/1000 SFP fiber slot ports, ports 1-8 can support IEEE 802.3af/at standard PoE power supply, single PoE power port up to 30W. It supports 802.1Q VLAN, support voice VLAN, support QoS, support ACL, support IGMP V1/V2 multicast protocol, support IGMP Snooping, support 802.1X authentication, support STP IGMP V1/V2 multicast protocol, support IGMP Snooping, support 802.1X authentication, support STP/RSTP/MSTP spanning tree protocol, support ERPS fast ring protocol, support SNMP management, etc. It has wide voltage input 44V~57V DC, supports rail mounting and wall mounting, IP30 protection can reduce the impact of dust, EMS high protection level, fearless of various harsh environments.
Product Features
lProvide 8 10/100/1000Mbps RJ45 ports, 8 SFP fiber ports.
lSupport IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab,IEEE802.3af, IEEE802.3at.
l8 PoE ports support 802.3af/at, per PoE power port up to 30W Poe budget.
l6KV 8/20us lightning protection, IP30 protection level.
lThe equipment fully meets the requirements of CE, FCC and RoHS safety regulations, and is safe and reliable.
lThe user can easily understand the working status of the device through the power indicator/ speed 1000M (Green), port status indicator (Link, Link/Act).

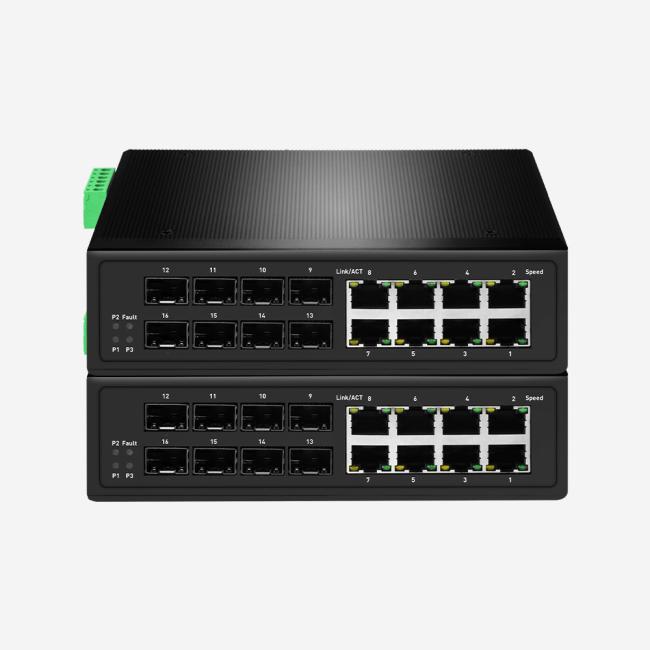

Product Pictures
