Managed Gigabit POE SFP Fiber Switch Industrial L2+ With 8GE Ports and 4G SFP Slots
SFP Fiber Switch Industrial L2+ Managed Gigabit PoE Switch With 8GE Ports and 4G SFP Slots
Technical Parameters
| Power Supply | 12~ 57 VDC/ 3A(MAX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab |
| Ports | 8×10/100/1000Mbps RJ45+4×SFP |
| Indicators | Speed 1000M (green), network Indicator: Link (yellow), SFP Indicator: L/A (green) |
| Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive |
| SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module. |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 149.2*122*50 mm |
| Power Consumption | Standby:<10W |
| MAC Address Table | 8K |
| Switching Capacity | 24Gbps |
| Packet Forwarding Rate | 17.856Mpps |
| Packet Buffer | 4Mbit |
| Net /Gross Weight | 0.75±0.05kg / 0.85±0.05kg |
| Warranty | 3 years , lifelong maintenance |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
System Overview
Gigabit managed industrial switch equipped with 8 10/100/1000M RJ45 ports and 4 10/100/1000 SFP fiber ports. The rugged aluminum housing design, natural heat dissipation, and electromagnetic interference protection make it adaptable to various harsh environments. Support two power supply access at the same time, redundant power supply to ensure uninterrupted operation of the equipment. Support wide voltage input of 12V~57VDC, adapt to various industrial power supplies. Provide three kinds of power protection protection, which greatly improve the reliability of the switch power supply.
Product Features
lSupport IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
lSupport port isolation, port mirroring, port broadcast storm suppression, port +MAC binding, IP+MAC+ port binding function.
lIP30 protection grade, and ensures the stable operation of the equipment in bad environment.
lEMC high protection level, no fear of various harsh environments.
lSupport IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs.
lSupport QoS, support port based, 802.1P based and DSCP based three priority modes and SP, WRR, SP+WRR four queue scheduling algorithms.

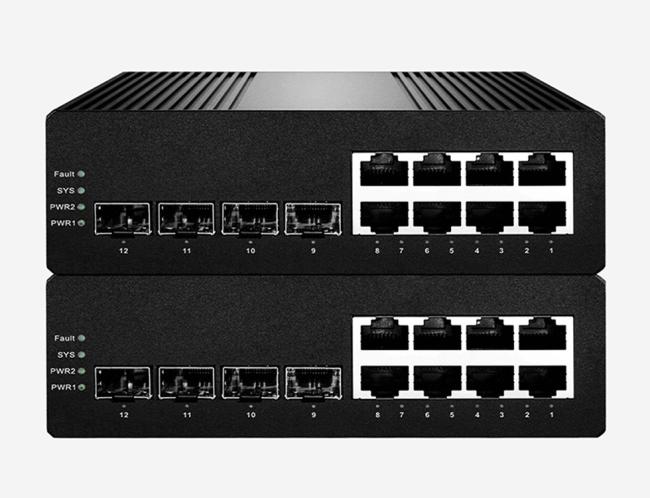

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
