Layer 2+ Managed Gigabit Ethernet Switch with 4G SFP Slots And 24GE RJ45 Ports
SFP Fiber Switch Industrial Layer 2+ Managed Gigabit Ethernet Switch with 4G SFP Slots And 24GE RJ45 Ports
Technical Parameters
| Power Supply | 12~ 57 VDC or AC 220V/2A(MAX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab |
| Ports | 24×10/100/1000Mbps RJ45 ports+4×SFP fiber ports |
| Indicators | • Link/Act (green) • Power Indicator: green |
| Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive |
| SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module. |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 440 mm *242 mm *45 mm |
| Power Consumption | Standby:<18W(NOT PoE) |
| MAC Address Table | 8K |
| Switching Capacity | 56Gbps |
| Packet Forwarding Rate | 41.664Mpps |
| Packet Buffer | 4.1Mbit |
| Net /Gross Weight | <3kg / <3.5kg |
| Warranty | 3 years , lifelong maintenance |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
System Overview
Gigabit industrial L2+ managed Ethernet fiber switch, designed to meet the needs of industrial fields and systems, and can operate stably in harsh usage environments for a long time. It has 24 Gigabit RJ45 adaptive electrical ports, 4 Gigabit SFP fiber ports, and all ports support full wire-speed forwarding.
Product Features
lSupport IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab.
lSupport rack mounting.
lSupport IPV4/IPV6 management.
lCE, FCC, RoHS certified.
lSupport QoS, ACL, DHCP, SNMP V1/V2C/V3, STP (IEEE802.1d), RSTP (IEEE802.1w), MSTP (IEEE802.1s).

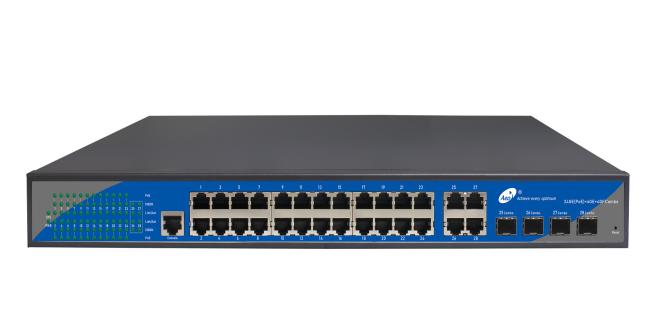

Product Pictures
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
