Unmanaged Industrial Gigabit Fibre Switch 1 SFP Slot and 4 Ethernet Ports
UNMANAGED INDUSTRIAL GIGABIT FIBRE SWITCH 1 SFP Slot and 4 Ethernet Ports
Technical Parameters
| Ethernet Interface | ||
| Ports | 4×10/100Base-TX Port(RJ45)
1x100Base-X(SFP/1×9) |
4×10/100/1000Base-TX Port(RJ45)
1x1000Base-X(SFP/1×9) |
| Port Mode(Tx) | Auto-Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Standards | IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet IEEE 802.3x for flow control and back pressure IEEE802.3az for Energy Efficient Ethernet(EEE) |
IEEE 802.3 for 10BaseT
IEEE 802.3u for Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x for flow control and back pressure IEEE802.3az for Energy Efficient Ethernet(EEE) |
| Packet Buffer Size | 512K | 1M |
| Maximum Packet Length | 9K | 10K |
| MAC Address Table | 4K | 4K |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 1.25G |
Delay time: < 7μs
Backplane bandwidth: 12G |
| Physical Characteristics | |
| Housing | Aluminium case |
| IP Rating | IP40 |
| ESD Protection | 6kV |
| EFT Protection | 6kV |
| Installation Mode | DIN Rail/Wall Mount |
| Weight | 400g(without PoE) |
| Working Environment | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~95% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Heat Dissipation | 10 BTU/h (Non-PoE)
420 BTU/h (30W PoE) 1260 BTU/h (90W PoE) |
| Cooling | Passive Cooling |
| Noise Level | 0 dBA |
System Overview
The Unmanaged Industrial Ethernet Switch is designed for small business industrial network applications. It provides an easy way to make the access point to Fast or Gigabit Ethernet. With a robust design, this switch is ideal for industrial or outdoor surveillance, withstanding the harshest conditions.
Product Features
1. Supporting all the network HD cameras and other network signals;
2. Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
3. Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
4. Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
5. Supporting POE on the network port;
6. Providing the transmission of ultra low delayed data;
7. Protecting from network broadcast radiation;
8. Adapting parallel or cross-wire connection;
9. Support the din rail & desktop installation
10. Built-in The United States Marvell and Broadcom industrial switch IC. High-speed processing capability and capacity of the cache, ensure a stable and reliable network.
11. Fanless cooling circuit design, built-in heatsinks, thermal adhesive, such as multiple thermal structure design makes it in all kinds of consistent performance in harsh environment, operating temperature ranges up to -40℃ ~ +85℃.

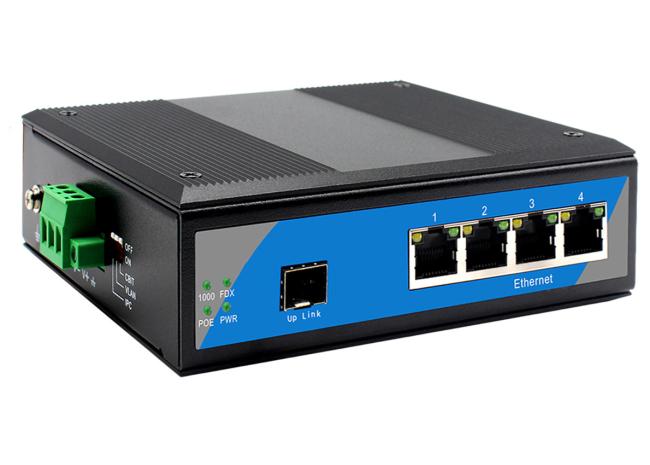

Product picture
