Unmanaged Industrial Gigabit Fiber POE Switch With 1 SFP Slot And 4 Ethernet Ports
UNMANAGED INDUSTRIAL GIGABIT FIBRE SWITCH 1 SFP Slot and 4 Ethernet Ports
Technical Parameters
| Ethernet Interface | ||
| Ports | 4×10/100Base-TX Port(RJ45)
1x100Base-X(SFP/1×9) |
4×10/100/1000Base-TX Port(RJ45)
1x1000Base-X(SFP/1×9) |
| Port Mode(Tx) | Auto-Negotiation Speed
Full/Half Duplex Mode Auto MDI/MDI-X Connection |
|
| Standards | IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet IEEE 802.3x for flow control and back pressure IEEE802.3az for Energy Efficient Ethernet(EEE) |
IEEE 802.3 for 10BaseT
IEEE 802.3u for Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x for flow control and back pressure IEEE802.3az for Energy Efficient Ethernet(EEE) |
| Transmission Mode | Store and Forward (full/half duplex mode) | |
| Exchange Property | Delay time: < 7μs
Backplane bandwidth: 1.25G |
Delay time: < 7μs
Backplane bandwidth: 12G |
| Physical Characteristics | |
| Housing | Aluminium case |
| IP Rating | IP40 |
| ESD Protection | 6kV |
| EFT Protection | 6kV |
| Installation Mode | DIN Rail/Wall Mount |
| Weight | 400g(without PoE) |
| Working Environment | |
| Operating Temperature | -40℃~75℃ (-40 to 167 ℉) |
| Operating Humidity | 5%~95% (non-condensing) |
| Storage Temperature | -40℃~85℃ (-40 to 185 ℉) |
| Heat Dissipation | 10 BTU/h (Non-PoE)
420 BTU/h (30W PoE) 1260 BTU/h (90W PoE) |
| Cooling | Passive Cooling |
| Noise Level | 0 dBA |
System Overview
The Industrial switch is Plug-and-Play, allowing for easy and quick deployment. It can optionally be mounted on a DIN-Rail or Wall Mount, making it suitable for various installation methods. An LED monitor displays information from Ethernet-connected devices such as IP cameras, wireless access points, or PC/laptops.
Product Features
1. Supporting all the network HD cameras and other network signals;
2. Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
3. Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
4. Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
5. Supporting POE on the network port;
6. Providing the transmission of ultra low delayed data;
7. Protecting from network broadcast radiation;
8. Adapting parallel or cross-wire connection;
9. Support the din rail & desktop installation
10. Fanless cooling circuit design, built-in heatsinks, thermal adhesive, such as multiple thermal structure design makes it in all kinds of consistent performance in harsh environment, operating temperature ranges up to -40℃ ~ +85℃.

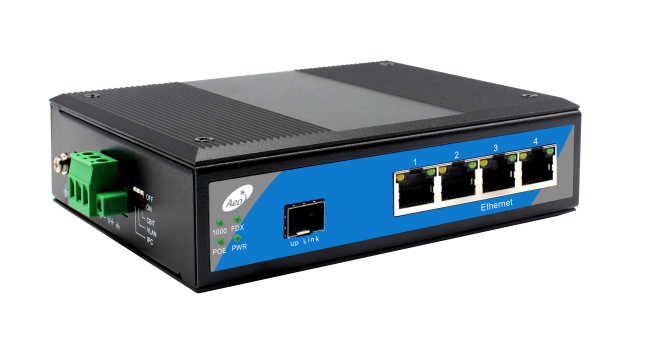

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
