HD SDI Converter 1 Channel 12G-SDI Video Signal 20KM Over Fiber

HD SDI Converter 1 Channel 12G-SDI Video Signal 20KM Over Fiber

Technical Parameters

Overview

Mini 12G-SDI video to fiber optical converter supports 1-channel 12G-SDI Video/Data or Tally signal transmitted via fiber optical cable,and monitor the signal locally over a 12G-SDI loop output,12G-SDI video over fiber converter includes one transmitter and one receiver for 4K 12G-SDI signal.

Features

1.1 channel 12G-SDI Video/Data & Tally over optic fiber
2.Each SDI channel includes 1-channel audio embedded
3.SDI input/LC fiber output/SDI Loop
4.Automatic cable equalization to ensure signal integrity
5.Supports 12G / 6G / 3G / HD / SD
6.Compatible with DVB-ASI and AES10 (MADI)
7.Integrated reclock locks to SMPTE rates of 11.88Gbps,5.94Gbps,2.97Gbps,1.485Gbps or divide-by-1.001 sub-rates and 270Mbps
8.Directly compatible with 12G/6G/3G-SDI camera systems
9.Long transmission capability at least 10 km,up to 40 km
10.Type C 5V power input
11.Supports hot swapping and hot plugging
12.Full digital non-compression broadcast level transmission
13.Super optic dynamic range and free of adjustment prior to use
14.Fiber optic WDM/CWDM/DWDM technique
15.Support HDTV 4K*2K(3840*2160@60Hz),1080P,1080I,720P.

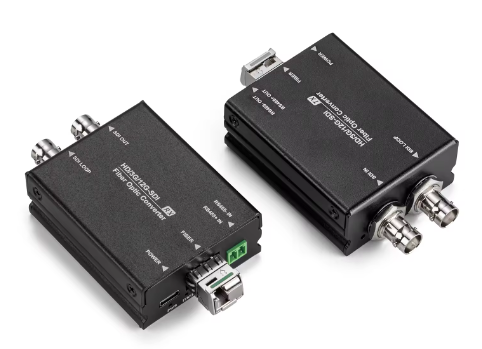

Product Picture
