EOC Ethernet Over Coax Extender 10/100mbps 2km 1 Ethernet And 4 BNC Ports Over Coax Cable
EOC Ethernet over Coax Extender 10/100mbps 2km 1 Ethernet and 4 BNC ports over Coax Cable
Technical Parameters
| Transmission medium | Coaxial cable, twisted-pair |
| Connection port | RJ45*1, BNC*4 |
| Transmission distance/speed | Cable length < 400Meter——92Mbps; Cable length < 1000Meter——74Mbps; Cable length < 1500Meter——30Mbps; |
| M/S setting | Defaults to Master mode |
| Power supply | 12VDC |
| Max power consumption | 2.2W |
|
Coaxial Cable Input |
BNC(75Ω unbalanced) |
|
Coaxial Cable Output |
BNC(75Ω unbalanced) |
| Working Temperature | -20°C ~ +70°C |
| Storage Temperature | -20°C ~ +70°C |
| Relative humidity | 5%~95%, Non-condensing |
| Dimension | 130*68*32mm |
| Weight | 0.24Kg |

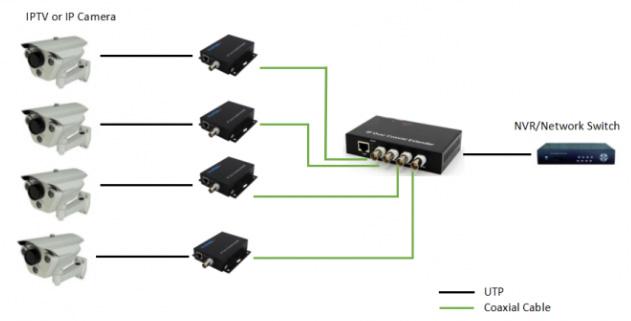

System Overview
EOC Ethernet to BNC Converter transfers the network HD signals on the coaxial cable, EOC Ethernet to BNC Converter transfers the network HD signals on the coaxial cable, IP network cable, Power line, it can support HD 1080 P video signal transmission and the maximum transmission distance is up to 2,000 meters without delay.
Product Features
High speed of communication, support multimedia business and network. Based on the latest P1901 technology in IEEE, it can also support network HD video and high speed data signal transmission through multi-medium like coaxial cable, IP network cable, Power line.
Support multi-channel signal transmission, resolution HD video , alarm, talkback and signal control on a coaxial cable.
Long transmission distance: Max transmission distance up to 2000 meters without repeater on the ordinary SYV75-5 cable, simplifying network wiring. For the ordinary SYV75-5 cable, keep TCP/IP’s Mbps no less than 30Mbps in the 2KM distance.
High transmission performance: support multi-channel HD transmission simultaneously without delay, digital signal only transmit simply in different medium without harm.

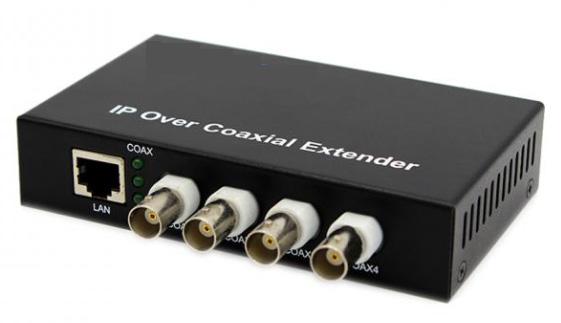

Product picture
