Gigabit Fiber SFP Switch 1.25Gbps 8 SFP Fiber Ports And 2 RJ45 Ports
Gigabit Fiber SFP Switch 1.25Gbps 8 SFP Fiber Ports and 2 RJ45 Ports
Technical parameters
| Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX |
IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.3az |
| Certifications | CCC, CE, FCC, RoHS | |
| Ethernet Port |
Ø Connector: RJ45 Ø Data Rate: 10/100/1000M Ø Distance: 0～100m Ø UTP Type: UTP-5E or higher level |
|
| Fiber Port |
Ø Connector: SFP slot Ø Data Rate: 1.25Gbps Ø Optical Wavelength: 850nm/1310nm/1490nm/1550nm Ø Distance: 550m～120km |
|
| Performance |
Ø Processing Type : Store and Forward Ø MAC Table Size: 8K Ø Buffer Space: 1Mbit Ø Maximum Packet Length: 9K bytes Ø Back bandwidth: 20G Ø Time Delay: ＜20μs |
|
| Power |
Ø Power type:external power supply Ø Input Voltage: AC100V～240V 50/60Hz Ø Connector: DC Socket Ø Working Voltage: 5V Ø Power Consumption: 4W～10W |
|
| Environment |
Ø Storage Temperature: -40～70℃ Ø Operating Temperature: -10～55℃ Ø Relative Humidity: 5-90% ( no condensation) |
|
| Warranty | 1 year | |
| Physical Characteristics |
Ø Dimension: 216×133×30mm Ø Weight: 0.55kg Ø Color: Metal, Black |
|
Product overview
10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has two 10/100/1000Mbps Ethernet ports and eight 1.25Gbps fiber ports. It extends the transmission distance of a network from 100m to 120km via copper cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Product featurer
Ø Support the switch between 10/100/1000Base-T and 1000Base-SX/LX
Ø 8*1.25Gbps full-duplex fiber ports and 2*1000M Ethernet ports with auto-negotiation function
Ø Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function
Ø Each port has the complete LED Indicator light
Ø Support IEEE802.1d Spanning Tree
Ø Support high performance QoS function on each port
Ø Support broadcasting storm control
Ø Support multicast to avoid network congestion
Ø Support 5-16V voltage input.
Ø Internal 8K MAC Address Entities
Ø Support 9K Jumbo packet
Ø Support IEEE 802.3x flow control and back pressure control
Ø Require no configuration and will instantly operate as soon as you power it up
Ø Use Marvel chip, stable and reliable
Ø Low power consumption chip with heat sink built in to ensure longtime efficient operation.

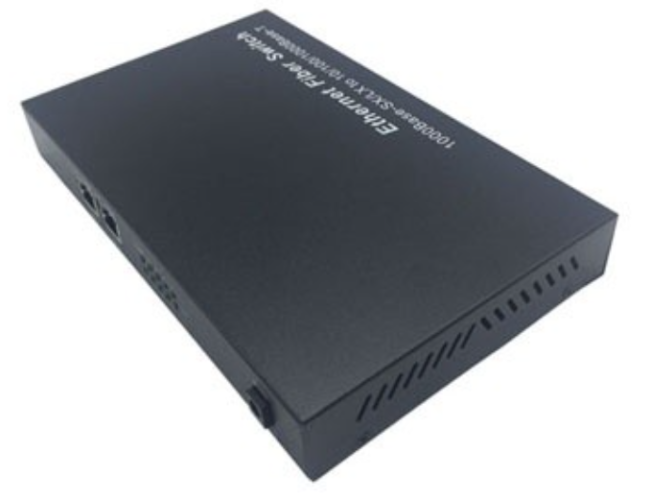

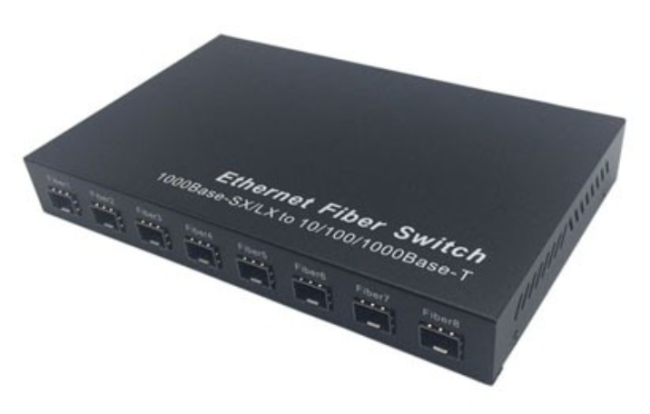

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
