Gigabit Ethernet Fiber Switch 1.25Gbps 8 SFP Fiber Ports And 2 RJ45 Ports
Gigabit Ethernet Fiber Switch 1.25Gbps 8 SFP Fiber Ports and 2 RJ45 Ports
Technical parameters
| Product | Full Gigabit 10 port fiber Switch |
| Fixed Port |
2*10/100/1000Base--TX RJ45 port (Data) 8*1000M Integrated SFP(optional 1310/1550) |
| Network Protocol |
IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X |
| Port Specification | 100/1000BaseT(X) Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 10Gbps |
| Packet Forwarding | 12.96Mpps |
| MAC Address | 2K |
| Buffer | 2.5M |
| Transmission Distance |
10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-100KM SFP |
| Watt | ≤15W; |
| LED Indicator |
PWR:Power LED 1-8:(SFP LED) TP1/TP2: Port LED Port :(Green=10/100M LED+Orange=1000M LED) |
| Power | External power DC 5V 3A |
| Operating Temperature/Humidity | -15~+65°C;5%~90% RH Non coagulation |
| Storage Temperature/Humidity | -40~+75°C;5%~95% RH Non coagulation |
| Product size/Packing size(L*W*H) |
215mm*134mm*30mm 295mm*255mm*55mm |
| N.W/G.W(kg) | 0.86kg/1kg |
| Installation | Desktop (optional wall hanger+machine hanger parts) |
| Lightning Protection level |
3KV 8/20us; IP30 |
| Certificate | CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;MA;CNAS |
| Warranty | 1 year |
Product overview
10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has two 10/100/1000Mbps Ethernet ports and eight 1.25Gbps fiber ports. It extends the transmission distance of a network from 100m to 120km via copper cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Product featurer
1. Standards: IEEE 802.3z/AB 10/100/1000Base-T 1000Base-SX/LX/ZX
2.Fiber Cable:
1000SX: 50/125,62.5/125µm multi-mode
1000LX/ZX: 8.7/125, 9/125µm single-mode.
3. UTP Cable: Cat.5e or Cat.6 cable up to 100m.
4. Data Transfer Rate:
RJ45 port: 10M, 100M, 1000Mbps
SFP: 1000Mbps.
5.LED Indicators : P1,P2,P3,P4,P5,P6,P7,P8, SPD, Act, PWR.
6. Duplex Modes: RJ45 port: Way Full/Half Duplex auto- negotiation SFP: full-duplex mode
7.Power Requirement: 220V(100-260V)AC,50Hz DC5V/2A
8. Ambient Temperature: 0 ~ 50℃
9.Humidity: 5% ~ 90%
10. dimensions:30 × 172 × 110mm(H×W×D)

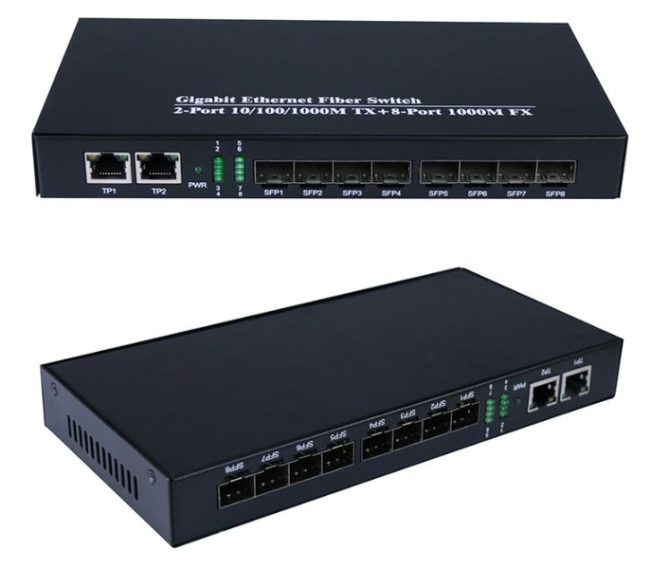

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
