Managed SFP Switch Industrial 4 1000M POE Ports with 2*1000M SFP Ports
Managed SFP Switch Industrial 4 1000M POE Ports with 2*1000M SFP Ports
Technical parameters
| Interface |
4*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber slot ports (Data) 1 * RS232 console port (115200, N,8,1) 2 sets of V+, V- redundant DC power interface (4 Pin Phoenix terminal) |
|
| PoE Port | Port 1-4 can support IEEE802.3af/at POE standard | |
| Network Protocol |
IEEE802.3 10BASE-T IEEE802.3u 100BASE-T/TX IEEE802.3ab 1000BASE-T IEEE802.3z 1000BASE-X IEEE802.3u 100BASE-FX IEEE802.3x. |
|
| PoE Standard | IEEE802.3af/at | |
| SFP Port Characteristic | Gigabit SFP optical fiber interface, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical module. | |
| Forwarding Mode | Store and Forward | |
| Switching Capacity | 128Gbps (Non-blocking) | |
| Forwarding Rate@64byte | 8.93Mpps | |
| MAC | 8K | |
| Buffer Memory | 4M | |
| Twisted Pair Transmission |
10BASE-T: Cat3,4,5 UTP (≤100 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-T: Cat5e or later UTP (≤100 meter) |
|
| Optical Cable | Multimode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |
| Power Supply Pin | Default 1/2(+), 3/6(-); | |
| Operating Voltage | DC power supply, DC48-57V ultra-wide supply voltage, 5P Phoenix terminal connection, support anti-reverse protection | |
| Max / Average Power Per Port | 30W/15.4W | 30W/30W |
| Total PWR / Input Voltage | 60W (48-57VDC) | 120W (48-57VDC) |
| Power Consumption | Standby:<6W; Full load:<60W | Standby:<7W; Full load:<120W |
| LED Indicator | Power indicator: PWR (Green); Network indicator: 1-4(Link/Act)/ (Orange),5-6(Link/Act)/ (Green); POE indicator: PoE (Green) | |
| Power Supply | No, see accessories information table to buy and use | |
| Operation TEMP / Humidity | -40~+80°C;5%~95% RH Non condensing | |
| Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |
| Dimension | 145*112*48mm | |
| Net /Gross Weight | <0.7kg /<1.2kg | |
| Lightning protection / protection level |
Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable: ±4kV; data cable: ±2kV IEC61000-4-5(Surge): power cable:CM±4kV/DM±2kV; data cable: ±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV, DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022): Class B IEC61000-6-2(Common Industrial Standard) |
|
| Certification | CCC; CE mark, commercial; CE/LVD EN60950; FCC Part 15 Class B; RoHS; | |
Product overview
This switch provides 4 Gigabit Ethernet RJ-45 ports and 2 Gigabit SFP uplink ports. It meets IEEE 802.3af/at standard. All RJ-45 ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port.
The switch has extensive L2 management functions, such as 802.1Q VLAN, 802.1P QoS, STP/RSTP, Link aggregation,DHCP and PoE control. It can be easily managed via a WEB GUI (http/https), CLI (telnet/ssh/console) or SNMP.
Product featurer
• Working temperature:-40〜75℃
• Redundant power supply
• 8kV contact discharge, 12kV air discharge ESD protection
• Fan-less metal shell design
• DIN-rail installation
• 802.1Q VLAN
• 802.1P QoS
• SNMP
• STP/RSTP/MSTP
• ERPS
• DHCP snooping

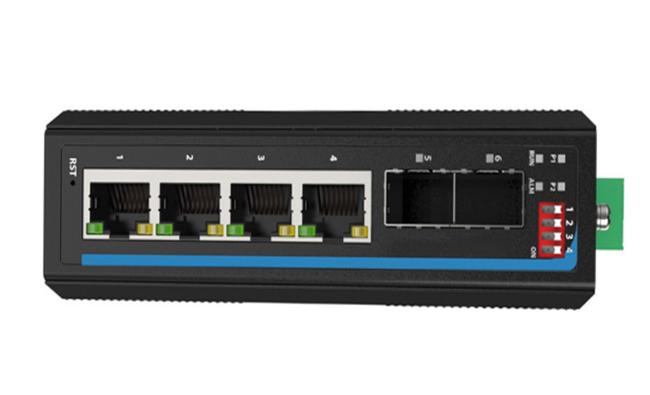

Product picture
