Rugged Gigabit Fiber Media Converter , SC 20KM Single Core Media Converter
Gigabit Fiber Media Transceiver Single Mode Single Fiber 1310/1550nm SC 20KM
Technical Parameters
| Backplane Bandwidth | 4G |
| Cache | 1M |
| MAC Address Table | 1K |
| MAX Frame size | 1632bytes |
| 10/100Mbps Ethernet port | One 10/100/1000Mbps adaptive RJ45 interface |
| 100Mbps optical port | One 10/100/1000Mbps optical port,SC |
| Optical fiber port | Single mode single fiber; multimode dual fiber is optional |
| Optical wavelength | 1310/1550nm (single mode single fiber) |
| The input voltage | DC5V±5% |
| Shell material | Iron |
| Protection grade | IP30 |
| Operating temperature | -20~70°C |
| Operating humidity | 5% ~ 90% |
| Heat dissipation | Built-in passive heatsink cooling, Silent fanless design |
| Transmission power | -10~-2 dBm |
| Received sensitivity | ≤-24 dBm |
| Power consumption | Full load≤3W |
| MTBF | 100000 hours |
Product Overview
The fiber media transceiver is single mode single fiber SC 20km gigabit one, supplies one 10/100/1000Mbps Ethernet port. Using advanced photoelectric conversion technology to convert Ethernet signal into optical signal that is transmitted on multimode or single mode fiber, the limitation of short distance of cable transmission is exceeded, and the transmission demand of long-distance high-speed Ethernet is met.
Product features
◆ 10/100/1000Mbps auto-sensed, facilitating network upgrade
◆ Built-in efficient switching core to implement flow control and reduce broadcast packets
◆ Full-duplex and half-duplex auto-sensed
◆ Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
◆ Supporting 10/100/1000Mbps store-and-forward and cut-through transmission with optional dip-switch(unique)
◆ Supporting the transmission of extra-long packets up to 1632bytes
◆ Supporting the transmission of extra-long VLAN packets
◆ Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
◆ Supporting STP to form a redundant network
◆ Extremely low power consumption, low heat, stable performance and long lifetime

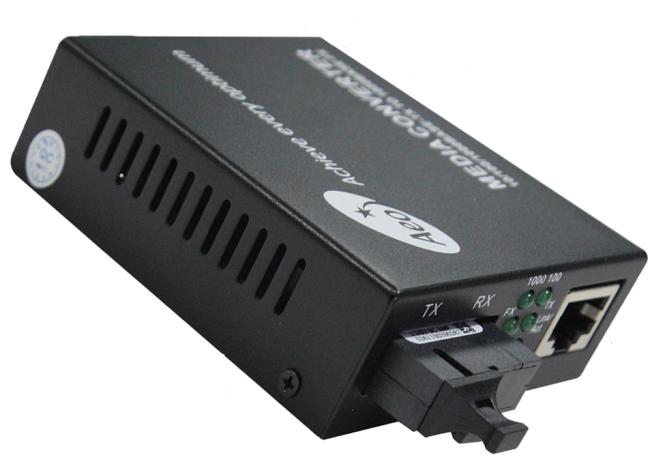

Product Pictures
Application Diagram
