60km Optical To Ethernet Media Converter One Fiber Four POE
Fiber Optical Switch Gigabit Single Fiber Single Mode One Fiber and Four POE
Technical parameters
| Network port | 4 10/100/1000Base-T(X) adaptive POE RJ45 Ethernet ports | |
| Optical port | 1 10/100/1000Mbps optical port, standard SC (ST, FC is optional) | |
| Transmission distance | Standard is 20km, 40/60/80/100km is optional. | |
| Backplane processing capacity | 12G | |
| MAC address table | 8K | |
| Cache | 1M | |
| MAX frame length | 10Kbytes | |
| Power Consumption | ≤4W | |
| Fiber wavelength | 1310nm/1550nm(single mode single fiber also can be multimode dual fiber) | |
| Transmitted power | -10~-2 dBm | |
| POE | Standard protocol | IEEE802.3af/at |
| Pin Connections | V+ V+ V- V- corresponding to 4,5,7,8(1,2,3,6 optional) | |
| Input voltage | +44~+57VDC | |
| Output power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
| Receiving sensitivity | ≤-24 dBm | |
| Relative humidity | 5~90% | |
| operating temperature | -10~60°C | |
| Shell material | iron | |
Product overview
The fiber optical switch is one gigabit optical port and 4 gigabit POE ethernet ports. It is with management function, it with the IPC extender 250m and VLAN & CBIT functions. It automatically adapts to gigabit transmission rate and supplies multiport Ethernet ports to meet user requirements, the transmission distance can be more than 100km to meet the requirements of long distance and high speed Ethernet, can easily realize the mainboard server, repeaters, network camera, the interconnection between the terminals and the terminal. Product performance is stable and reliable, the design meets Ethernet standard, and with lightning protection measures. Especially suitable for telecom, cable TV, railways, military, financial securities, customs, civil aviation, sea transport, electric power, water conservancy, oil field and other broadband data network and require high reliability of data transmission or set up IP data transmission field of private network.
Product features
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
◆ Support CBIT intelligent video optimization technology to ensure that high-definition video monitoring solutions always present high-quality images;
◆ CBIT applicable conditions: applicable to the entire link has this function of the environment.
◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.

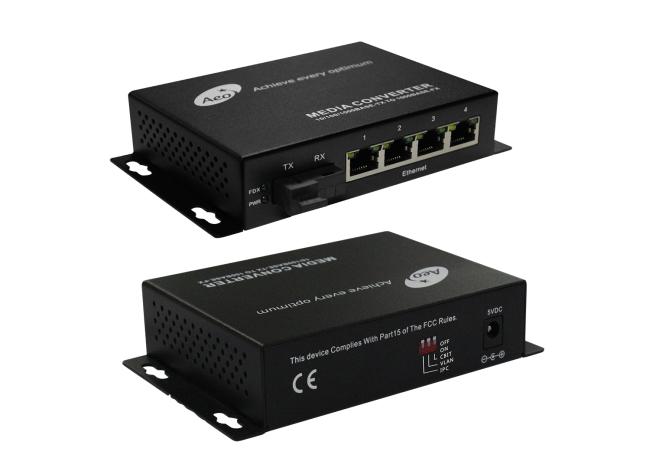

Product Picture
