Gigabit Commercial Media Converter , SC Fiber To Ethernet Converter
Gigabit Fiber to Ethernet Converter Single Fiber Single Mode 1 SC Fiber and 2 Ethernet Ports
Technical parameters
| Network port | 2 10/100/1000Base-T(X) adaptive RJ45 Ethernet ports | |
| Optical port | 1 10/100/1000Mbps optical port, standard SC (ST, FC is optional) | |
| Transmission distance | Standard is 20km, 40/60/80/100km is optional. | |
| Backplane processing capacity | 14G | |
| MAC address table | 2K | |
| Cache | 2M | |
| MAX frame length | 9216Kbytes | |
| Power Consumption | ≤3W | |
| Fiber wavelength | 1310nm/1550nm(single mode single fiber also can be multimode dual fiber) | |
| Transmitted power | -10~-2 dBm | |
| Receiving sensitivity | ≤-24 dBm | |
| Relative humidity | 5~90% | |
| operating temperature | -20~70°C | |
| Shell material | iron | |
Product overview
The gigabit fiber to ethernet converter is with management function, it is with the IPC extender 250m and VLAN & CBIT functions. It automatically adapts to gigabit transmission rate and supplies multiport Ethernet ports to meet user requirements, the transmission distance can be more than 100km to meet the requirements of long distance and high speed Ethernet, can easily realize the mainboard server, repeaters, network camera,
Product features
◆ Automatically compatible with IEEE802.3 IEEE802.3U and IEEE802.3 X network protocols.
◆ Support full duplex and half-duplex transmission mode, and with automatic negotiation ability.
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆ Support the long packet transmission.
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆ To provide low delay of data transmission.
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 200M.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

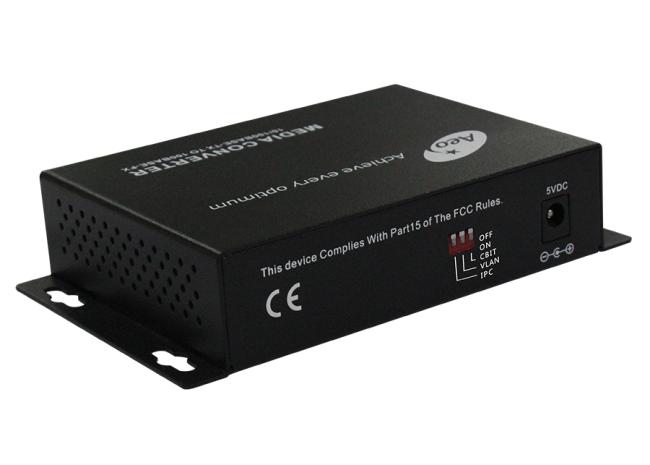

Product Picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
