10 Ports Ethernet SFP Fiber Switch with 6 SFP Slots and 4 Ethernet Ports
10 Ports Ethernet SFP Fiber Switch with 6 SFP Slots and 4 Ethernet Ports
Technical Parameters
| Port | |
| 10/100Mbps network port | 4 10/100Mbps RJ45 ports |
| 100Mbps optical port | 4 10/100Mbps SFP ports |
| 1000Mbps optical port | 2 10/100/1000Mbps SFP ports |
| Exchange properties | |
| Switch way | Store-and-Forward |
| backplane bandwidth | 7.6G |
| MAC address table | 8K |
| cache | 1Mbit |
| Max frame length | 1632bytes |
| Network extender | IPC function opened,UTP is 250M from switch to camera |
| VLAN | VLAN can block the communication between the ports |
| CBIT | Intelligent video optimization to ensure smooth and high quality video transmission |
| Power | |
| Power adapter input | DC12V~48V two way backup redundancy |
| Power terminal | 6 pin industrial terminal, one - way relay alarm output |
| Equipment power | <10W |
| Overload protection | support |
| Reverse connection protection | support |
| Redundancy protection | support |
| Environment | |
| Working temperature | -40℃ ~ 85℃ |
| Working humidity | 5% ~ 95%( No condensation) |
| Dimension | 150×120×45mm |
| Shell | IP40 High strength aluminum shell, no fan |
| Installation | desk-top and din rail |
| Protective | |
| MTBF | 100000 hours |
| EN61000-4-2 anti-static | ±8KV contact discharge；±15KV air discharge |
| EN61000-4-3 electromagnetic field | 10V/m(80～1000MHz) |
| EN61000-4-4 Instantaneous high pressure | ±10KV power cable,±2KV data cable |
| EN61000-4-5 surge voltage | ±10KV/CM,±10KV/DM power cable,±2KV data cable |
| EN61000-4-6 anti-conduction | 3V(10KHz～150KHz),10V(150KHz～80KHz) |
| mechanical | IEC60068-2-6(vibration) IEC60068-2-27(impact) IEC60068-2-32(Free fall) |
System Overview
SFP Ethernet Switch is the network type a fiber ring of light end machine adopts industrial redundant ring network design, and you can find two fiber ports which make up the ring net in every transmission equipment. The ring network topology structure is composed through hand in hand cascading, which can achieve no phase delay transmission of the 1080p HD network signals. The purpose of industrial redundant ring net design is to achieve the stability, reliability and instantaneity of the data transmission in a harsh environment.
Product Features
- Supporting all the network HD cameras and other network signals;
- Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
- Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
- Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
- Providing the transmission of ultra low delayed data;
- Protecting from network broadcast radiation;
- Adapting parallel or cross-wire connection;
- Having APC circuit, with constant optical power output and wide dynamic range;
- Optical fiber transmission, with large capacity which could be upgraded easily;
- Having advanced adaptive technology, no field of the use of optical or electrical adjustment
- Adapting three-level lighting protection technology on the computer ports and network signals.
- Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 200M
-
Adopting fan cooling energy circuit design, working temperature range can be up to -40 ~ 85℃;
-
the internal device is compact and compact, and the size and size design should consider the requirements of the installation space of the equipment.
- Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
- Support the din rail & desktop installation
- Support the CBIT to ensure the HD image.

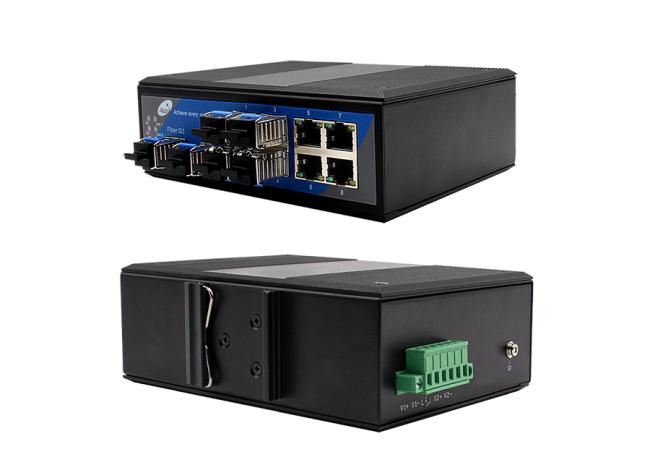

Product Pictures
