Industrial SFP Fiber POE Switch , 10/100Mbps Single Mode Fiber Switch
Industrial SFP Fiber Switch Single Mode 1 10/100Mbps SFP Slot and 8 10/100Mbps POE Ports
Technical parameters
| Network port8 | 8 10/100Base-T(X) adaptive POE RJ45 Ethernet ports | |
| Optical port | 1 10/100Mbps SFP slots, standard SC (ST, FC is optional) | |
| Transmission distance | Standard is 20km, 40/60/80/100km is optional. | |
| Backplane processing capacity | 1.8G | |
| MAC address table | 2K | |
| Cache | 1M | |
| MAX frame length | 1552bytes | |
| Power Consumption | ≤4.8W | |
| Fiber wavelength | 1310nm/1550nm | |
| Transmitted power | -8~-2 dBm | |
| POE | Standard protocol | IEEE802.3af/at |
| Pin Connections | V+ V+ V- V- corresponding to 4,5,7,8(1,2,3,6 optional) | |
| Input voltage |
DC12V~57V |
|
| Output power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
|
Heat dissipation |
Built-in passive heatsink cooling, Silent fanless design |
|
|
Surge protection (Ethernet) |
Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS) |
|
|
Surge protection (Power) |
2000A (8/20µS) |
|
|
Protection grade |
IP40 | |
| Receiving sensitivity | ≤-35 dBm | |
| Relative humidity | 5~90% | |
| operating temperature | -40~85°C | |
| Shell material | iron | |
Product overview
Industrial SFP fiber switch is 1 10/100Mbps SFP slot and 8 10/100Mbps POE Ethernet ports, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, it adopts industrial-grade design solution, through Electro-optical technique conversion, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100Km without repeater, it also can be connected with other network devices. Din rail style and desktop style for installation are provided, it supports wide range of power input, power with positive and negative protection, ultra wide range of operating temperature (-40~85℃), IP40 shell protection. The equipment can be used in combination with HD network integrated multi-port fiber switch to compose a large HD networks transmission system for easy control, it is an ideal device over fiber transmission for CCTV security, Telecommunications, Broadcasting, Network applications, suitable for roads, factories and mines, rail, traffic and other network scenario.
Product features
◆ To provide low delay of data transmission.
◆ Industry-standard design, IP40 shell protection
◆ Industrial-grade surge protection 3000V (power)
◆Support DC44V~DC57V dual redundant power input;
◆ Support 1552bytes the long packet transmission.
◆ Adaptive parallel line / crossover cable connection
◆Guide rail type installation, easy and quick installation;
◆Power overload protection, positive and negative anti-reverse connection protection;
◆ Industrial product standard, working temperature -40℃ ~ 85℃, protection grade IP40;
◆ Built-in efficient exchange core, the broadcast storm, flow control, CRC error checking.
◆Power port support POE function, construction is more convenient.
◆Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols
◆Supports full duplex and half duplex transfer modes, and with auto-negotiation skills
◆ Support the MDI/MDI - X adaptive, inside take a store-and-forward mechanism.
◆Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.

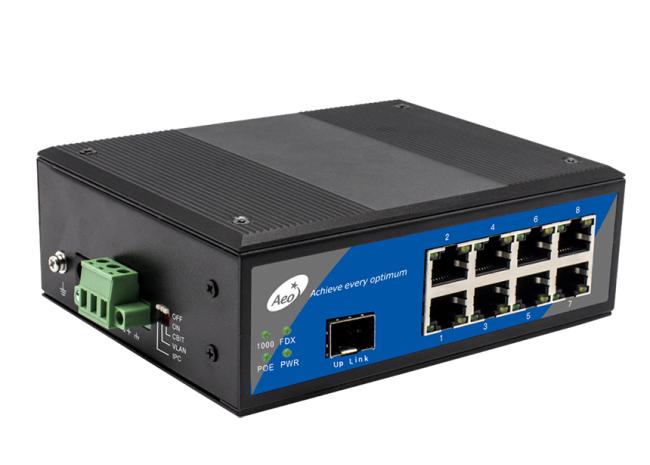

Product Pictures
Application Diagram
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
