10/100Mbps Industrial POE Switch
Industrial POE Fiber Optical Switch 10/100Mbps 4 POE Ethernet and 2 Optical Ports
Technical Parameters
| Network Ports | Four 10/100Base-T(X) adaptive POE Ethernet port | |
| Network Ports Properties | RJ45 | |
| Network Ports protocol | IEEE802.3,IEEE802.3U,IEEE802.3X protocol | |
| Ports Features | Support half-duplex, full-duplex, auto-negotiation mode | |
| Ports Features | Support MDI/MDI-X adaptation | |
| Delay | ﹤9.6μS | |
| Bit Error Rate | ﹤1/1000000000 | |
| Backplane Bandwidth | 1.6G | |
| Cache | 1M | |
| MAC address table | 2K | |
| Power consumption | ≤5W | |
| Transmission Rate | 10/100Mbps | |
| Optical Fiber Ports | 2 10/100Mbps Single Mode FC Optical Fiber Ports | |
| Optical Fiber Ports Properties | Wave Length:1310/1550nm | |
| Transmission Distance | Adjacent Distance:0-100KM | |
| POE protocol | IEEE802.3af/at | |
| Pin Definition | V+,V+,V-,V- Corresponding to 1,2,3,6 | |
| Output Power | 15.4W | |
| Rated Input voltage | +44~+57VDC | |
| Operating Temperature | -40 ~ 85℃ | |
System Overview
The industrial POE fiber optical switch is your best choice for smart building or fiber to desktop solution. It's with 2 10/100M optical ports and 4 10/100M POE ports. It extends the transmission distance from 20km to 100km, easily to make the connection among master servers, repeaters, hubs, terminals. It adopts industrial design, fanless, low power consumption. The working temperature range is -40℃～85℃. The reverse polarity protection prevents from device burnt. It supports industrial standard DIN-Rail installation or wall-mounted installation, which meets the different industrial network requirements. It is widely used in the field of power, rail transit, mine, and other industrial automation fields.
Product Features
- Supporting all the network HD cameras and other network signals;
- Adapting parallel or cross-wire connection;
- Having APC circuit, with constant optical power output and wide dynamic range;
- 10/100Mbps optical fiber transmission, with large capacity which could be upgraded easily;
- Having advanced adaptive technology, no field of the use of optical or electrical adjustment
- Adapting three-level lighting protection technology on the computer ports and network signals.
- Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
- Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
- Support the din rail & desktop installation
- Support the CBIT to ensure the HD image.
- Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
- Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
- Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
- Supporting POE on the network port;
- Providing the transmission of ultra low delayed data;
- Protecting from network broadcast radiation;
- Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;

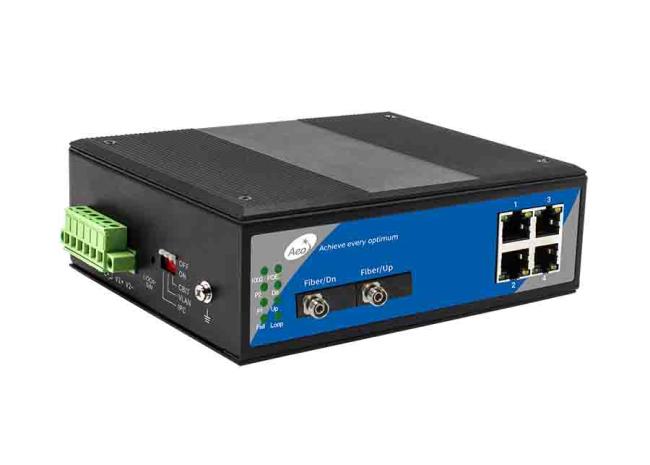

Product picture

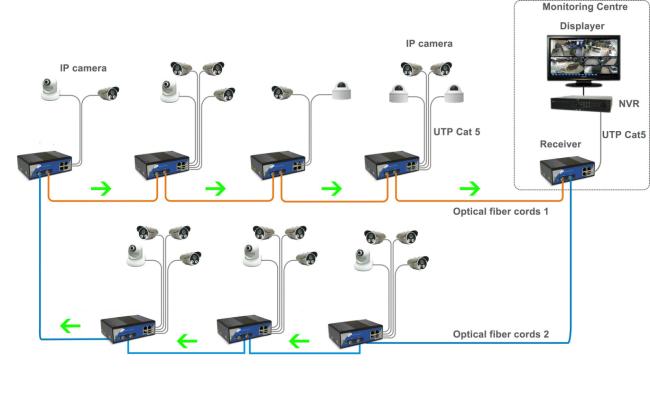

Application Diagram
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
