Cascading POE Ethernet Fiber Switch Full Gigabit 4 POE Ethernet and 2 Optical Ports
Cascading POE Ethernet Fiber Switch Full Gigabit 4 POE Ethernet and 2 Optical Ports
Technical Parameters
| Standards |
IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX IEEE802.3x Flow control and back pressure IEEE802.1d Spanning Tree IEEE802.3af/at POE |
| Performance |
Processing Type: Store and Forward Back Bandwidth:1.8Gbps MAC Address Size:2Kbit Time Delay: <10us Frame:1536bytes |
| Copper Port |
Data Rate: 10/100/1000M Connector: RJ45 x 4 POE Distance: 250m |
| Fiber Port |
Data Rate: 155M Connector: optical port x 2 Distance: 20-100km |
| Power |
Input Voltage: +44~+57VDC Power Consumption: ≤4W Connector: DC Socket |
| Environment |
Operating temperature : -10~65ºC Storage Temperature: -40~85ºC Relative Humidity: 5-95% (no condensation) |
System Overview
The cascading POE Ethernet Fiber Switch is the ideal solution for powering remote devices such as IP phones, video cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices, which are installed 250m far from a Power over Ethernet switch. In addition to transmitting data, the twisted-pair port also injects power down the cable, allowing a remote Power over Ethernet Device to operate without the need of any additional power source. All Power over Ethernet Powered Devices (IEEE 802.3af/at complaint) are supported, as the Power Sourcing Equipment (PSE) device can deliver a full 15.4W / 30W of power to the remote PD device.It features 2x 1000Base-X optical and 4 x 10/100/1000Base-TX twisted-pair port.
Product Features
- Supporting all the network HD cameras and other network signals;
- Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
- Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
- Support the din rail & desktop installation
- Support the CBIT to ensure the HD image.
- Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
- Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
- Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
- Supporting POE on the network port;
- Providing the transmission of ultra low delayed data;
- Protecting from network broadcast radiation;
- Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;
- Adapting parallel or cross-wire connection;
- Having APC circuit, with constant optical power output and wide dynamic range;
- 10/100/1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
- Having advanced adaptive technology, no field of the use of optical or electrical adjustment
- Adapting three-level lighting protection technology on the computer ports and network signals.

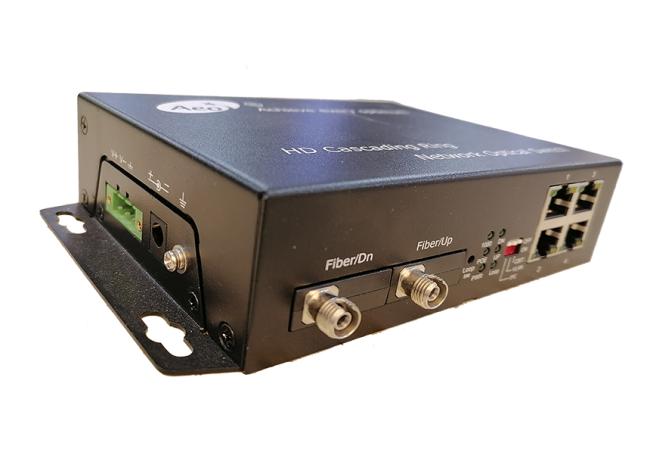

Product picture
Application Diagram
Packaging & Shipping
●All of our package are international standard package
●We will deliver our products as soon as the order confirmed
