100km 10 100 1000M Media Converter One SFP One Ethernet Port
10/100/1000Mbps SFP Media Converter One SFP Port and One Ethernet Port
Technical Parameters
| Interface |
1 x Ethernet port (RJ45) 10/100/1000Base-Tx
1 x Optical port (SFP) 1000Base-Fx
|
| Optical Port |
Available for 1310nm and 1550nm Single mode, and 850nm Multi mode;
Transfer Distance: up to 100km;
Connectors: SC,LC(SFP slot)
Fiber core: 9/125μm on single mode fiber, 50/125μm and 62.5/125μm on multi-mode fiber
|
| Ethernet Port |
Standard: IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3x
Available speed: force 10Mbps, force 100Mbps, force 1000Mbps and auto-detective 10/100/1000Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 Connector; MDI/MDI-X connection auto-sensing
|
| LED Indicators | Power Status, FDX, Speed, FX Link/Act, TX Link/Act |
| Power Requirement | Input: 5V DC |
| Physical Characteristics |
Housing: Metal enclosure
|
| Environmental Limits |
Operating Temperature: -10°C to 55°C
Storage Temperature: -20°C to 70°C
Operating Humidity: 10% to 90% RH
Storage Humidity: 5% to 90% RH
|
Product Overview
The gigabit SFP media converter is a Ethernet media converter that converts media transmission between TP copper cablings an fiber SFP(Small Form-Factor Pluggable) Transceivers. The SFP copper-to-fiber module is available in 10/100/1000Mbps Fast Ethernet types, allowing seamless integration between Fast Ethernet networks using unshielded twisted pair (UTP) copper cabling, and 1000M fiber networks.
The Gigabit Ethernet media converters support LFP (Link Fault Pass-Through) function, which is convenient for network administrators to quickly learn about and deal with network failures and reduce the losses caused by network failures.
Product features
◆ 10/100/1000Mbps auto-sensed, facilitating network upgrade
◆ Built-in efficient switching core to implement flow control and reduce broadcast packets
◆ Full-duplex and half-duplex auto-sensed
◆ Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
◆ Supporting 10/100/1000Mbps store-and-forward and cut-through transmission with optional dip-switch(unique)
◆ Supporting the transmission of extra-long packets up to 1632bytes
◆ Supporting the transmission of extra-long VLAN packets
◆ Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
◆ Supporting STP to form a redundant network
◆ Extremely low power consumption, low heat, stable performance and long lifetime

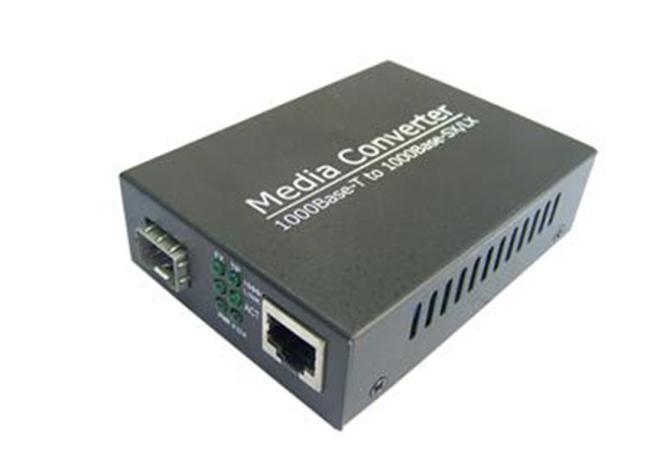

Product Pictures
Application Diagram
