2CH 3G SDI HD SDI To Fiber Optic Converter 2 BNC 1 Optical Port
2Ch HD-SDI/3G-SDI Video to Fiber Converter 2 BNC Ports and 1 Optical Port
Technical Parameters
| Optical | Wavelength | 1310nm&1470nm-1610nm |
| Fiber Type | Single mode, single fiber(default) | |
| Distance | 20km | |
| Fiber Interface | FC(default) LC/SC/ ST (optional) | |
| SDI Video | Video Interface Number | 2 |
| Physical Interface | BNC | |
| Max Resolution | 1920 x 1080 @ 60Hz | |
| Video Input and Output Impedance | 75Ω (unbalanced) | |
| Video Input/out put Voltage | Typical:1Vpp,Min 0.5Vpp, Max 1.5Vpp | |
| Video Bits Rate | Max 2.97Gb/s | |
| Video SDI standard | 270Mbps(SD-SDI),1.485Gbps/M(HD-SDI),SMPTE425M3Gb/s Mapping(3G-SDI),SMPTE424M 3Gb/s serial interface(3G-SDI) | |
| Data | Physical Interface | The industry standard connecting terminal |
| Interface Signal | RS485/RS422/RS232/Manchester | |
| Baud Rate | 0-400Kbps | |
| BER | < 10 -9 | |
| Operation Mode | Full duplex / half duplex | |
| Electrical & Mechanical | Input Power Requirements | DC 5V |
| Power Adapter | AC 100V~240V | |
| Dimensions | 19.2*16.7*4.9cm | |
| Packing | 34.5*21*9cm | |
| Weight | 1.35KG | |
| Environmental | Operating temperature | -20°C ~ +75°C |
| Storage temperature | -40°C ~ +85°C | |
| Working humidity | 0% ~ 95% (non-condensing) | |
| MTBF | >100,000 hours |
Overview
The 2 channel HD-SDI/3G-SDI to fiber converter is an ideal and economic solution for surveillance applications. It receives 8channel 3G-SDI/HD-SDI/SD-SDI electrical input, perfectly converts SDI signal to single mode optic signal, then converts optical signal to SDI signal. It supports transmission image of SDTV (143-540Mbps), and HDTV (1.485Gbps),3Gb/s Mapping(3G-SDI). Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality.
Features
SDI Video
Number of channels : 2 chs
Input/out put Connector : BNC 75Ω
Input/output voltage: 1.0 Volt p-p
Video Bits Rate: Max 3.2Gb/s
Video SDI Standards: 270Mbps(SD-SDI)
1.485Gbps/M(HD-SDI)
3Gb/s Mapping(3G-SDI)
Data
Data encode : RS485/RS422/RS232/Manchester
Physical interface : Industrial standard screw terminal
Frequency/Rate support : 0~400K bps
Fiber Optic
Number of Optical port : 1
Connector : Simplex FC
Single-mode 20Km
Single-mode:1310/1550nm (Option)
Electrical & Mechanical
Power adaptor : AC 100-240V to DC 5V 2A
Power consumption : <3W
Environmental
Operating Temperature : - 5C~+75 C
Storage Temperature : - 5 C~+85 C
Relative Humidity : 0%~95% (non-condensing)
MTBF : >100,000 hours

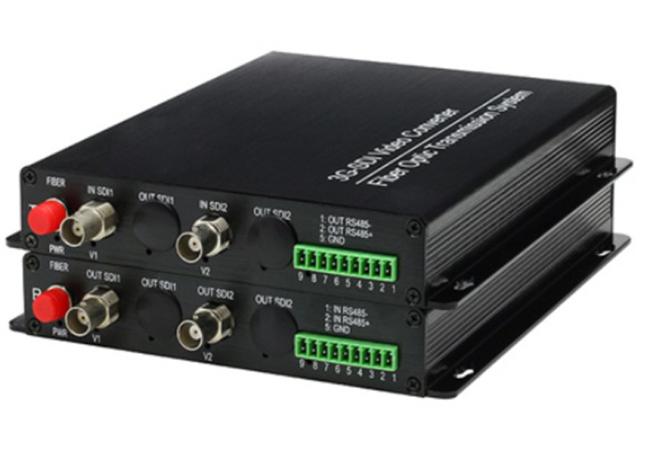

Product picture
Application Diagram
