8 Port Industrial Gigabit Switch
Industrial 8 Port SFP Switch Full Gigabit 1 SFP Slot and 8 POE Ports
Technical parameters
| Backboard capacity | 28G | |
| Cache | 2M | |
| MAC address | 2K | |
| Max frame | 9216bytes | |
| Ethernet port | 8 POE 10/100/1000Mbps rj45 ports | |
| Optic interface | SFP | |
| Ethernet port (10/100/1000Mbps) | 8 | |
| Optic interface (10/100/1000Mbps) | 1 | |
| Optical type | Single fiber single mode, 9/125um (multi-mode, 50um/125unu) | |
| Optical interface | FC, SC, LC for option | |
| Transmission distance | Standard 20Km (single fiber single mode), it is customized for max. 100Km | |
| Input voltage | DC44V - 57V | |
| Working temperature | -40℃ ~ 85℃ | |
| Relative humidity | 5% ~ 90% (Non-Condensing) | |
| Shell Material | Iron | |
| Heat dissipation | Built-in passive heatsink cooling, Silent fanless design | |
| Surge protection (Ethernet) | Common mode ±4KV(10/700µS), Differential mode ±2KV(10/700µS) | |
| Surge protection (Power) | 2000A (8/20µS) | |
| POE | Standard Protocol | IEEE 802.3af/at |
| Pin Definition | V+,V+,V-,V- Corresponding to 1,2,3,6 | |
| The Output Power | IEEE802.3af:15.5W IEEE802.3at:25.5W | |
| Power consumption | Full load≤5W | |
| Mean Time Between Failure (MTBF) | 100,000 hours | |
Product overview
Industrial 8 Port SFP Switch adopts industrial-grade design solution, through Electro-optical technique conversion, it can transfer data signal by different transmission media of twisted pair and fiber in new high-speed Ethernet network, multi-channel of HD 1080P network signals can be transferred without delay, it can meet the user’s requirements of long range transmission and high-speed transmission, the max high-speed transmission distance of HD network signals can reach 100 Km without repeater, it also can be connected with other network devices. Din rail style and desktop style for installation are provided, it supports wide range of power input, power with positive and negative protection, ultra wide range of operating temperature (-40~85℃), IP30 shell protection. The equipment can be used in combination with HD network integrated multi-port fiber switch to compose a large HD networks transmission system for easy control, it is an ideal device over fiber transmission for CCTV security, Telecommunications, Broadcasting, Network applications, suitable for roads, factories and mines, rail, traffic and other network scenario.
Product features
◆ Built-in United States Marvell industrial-grade network switching chips, performance is stable and reliable
◆ Automatically compatible with IEEE802.3, IEEE802.3U, IEEE802.3X network protocols
◆ Supports full duplex and half duplex transfer modes, and with auto-negotiation skills
◆ Supports Max 9216byte long data packet transmission
◆ Adaptive parallel line / crossover cable connection
◆ With APC circuit, constant output optical power, large dynamic range.
◆ Advanced adaptive technologies, without the need for on-site electrical or optical adjustment when using
◆ Power port and network signals comply with Three-level lightning protection technology
◆ Industry-standard design, IP40 shell protection
◆ Desktop style and din rail style installation for option
◆ Supports a variety of power supply wiring, power overload protection, anti-reverse polarity protection
◆ POE solution (optional): compatible with standard protocol IEEE802.3af /at.
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance.
◆ Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
◆ Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be about 250M.

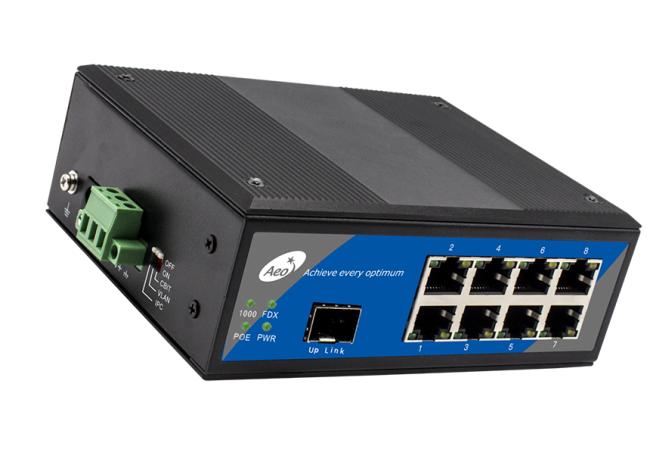

Product Pictures
Application Diagram
