Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots
Gigabit 24 Port POE Switch with 24 POE Ports and 4 Uplink Ports and 4 SFP Slots
Technical Parameter
| 10/100/1000M Ethernet port | 24 | |
| 10/100/1000M SFP | 4 | |
| 10/100/1000M Ethernet port | 4 | |
| Exchange capacity | 64G | |
| forwarding rate | 47.62Mpps | |
| MAC address table | 16k | |
| Switch mode | Store and Forward | |
| Port |
IEEE 802.3x flow control(full duplex) Supports PPS - based broadcast storm suppression |
|
| Max power consumption | 20W | |
| Rated voltage range | AC 100～240V ；50/60Hz | |
| Maximum voltage range | AC 90～264V；47/63Hz | |
| POE protocol | IEEE802.3af/at | |
| POE pin | V+ V+ V- V- to 1,2,3,6 | |
| Output power | 360W | |
| Working temperature | -20℃ to 70℃ | |
| Working humidity | 5% to 95% RH (No condensation) | |
| MTBF | 50000 hours | |
| Anti-static EN61000-4-2 | ± 8kV contact discharge; ±15 kV air discharge | |
| EN61000-4-5 Surge voltage | ± 2kV /CM, ± 2kV /DM power line, ± 2kV data line | |
| Enclosure material | Metal case | |
| Protection grade | IP20 | |
Product Introduction
The 24 port gigabit fiber POE switch is a full gigabit unmanaged PoE fiber switch with 24 gigabit POE ports and 4 gigabit ethernet ports and 4 gigabit SFP slots. It is easy to manage and maintain, and can meet the networking and access requirements of enterprises, intelligent communities, hotels, office networks and campus networks.
Product Features
● Comply with IEEE 802.3, IEEE 802.3U and IEEE 802.3AB standards;
● 24 10/100/1000Mbps POE adaptive RJ45, support automatic roll-over (auto-MDI /MDIX);
● 4 gigabit combo SFP ports;
● Support 16K MAC address;
● All ports support IEEE 802.3x half-duplex flow control and full-duplex backpressure mode;
● Non-blocking switching architecture, full speed forwarding and maximum throughput filtering packets;
● Provide ultra-low delay data transmission;
● Support MAC address learning, automatically adjust the transmission mode and transmission rate;
● All series supports "gigabit Ethernet port and gigabit SFP fiber port " combination, which enables users to flexibly build networking to meet the needs of various scenarios.
● Support non-blocking wire-speed forwarding.
● Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
● Support one key VLAN, lower port isolation function;
● LED indicator power supply,link and activity, provide simple working status prompts and troubleshooting;
● Built-in application power supply 100-240V AC;
● 19-inch metal shell design, protection grade IP30.
● Low power consumption, galvanized steel casing, The fan active cooling.
● Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
● Plug and play, no configuration, simple and convenient.
● The user-friendly panel, it can show the device status through the LED indicator of PWR, Link ,PoE.

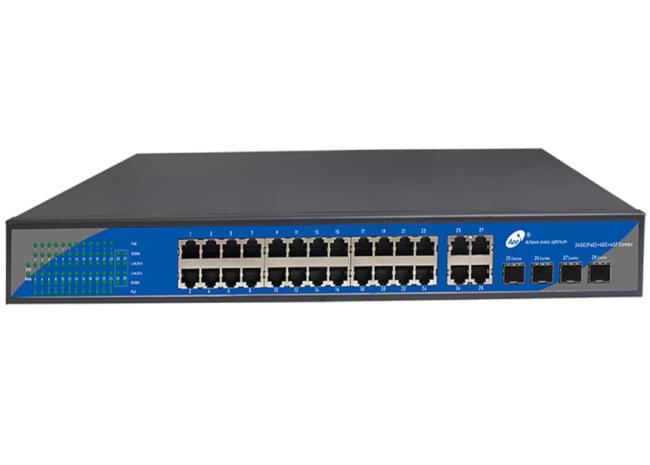

Product picture
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
