10/100/1000M Unmanaged Industrial Ethernet Switch 4 POE 2 SFP Ports
Industrial Unmanaged Network Switch 10/100/1000M 4 POE and 2 SFP Ports
Technical Parameters
| 1000M Network Ports | 4 10/100Base-T(X) adaptive Ethernet port | |
| 1000M Optical port | 2 | |
| Network Ports protocol | IEEE802.3,IEEE802.3U,IEEE802.3X protocol | |
| Ports Features | Support half-duplex, full-duplex, auto-negotiation mode | |
| Ports Features | Support MDI/MDI-X adaptation | |
| Delay | ﹤9.6μS | |
| Bit Error Rate | ﹤1/1000000000 | |
| Backplane Bandwidth | 12G | |
| Cache | 1M | |
| MAC address table | 1K | |
| Power consumption | ≤4W | |
| Transmission Rate | 1000Mbps | |
| Optical Fiber Ports | 2 1000Mbps Single Mode FC Optical Fiber Ports | |
| Optical Fiber Ports Properties | Wave Length:1310/1550nm | |
| Transmission Distance | 20-100KM | |
| POE protocol | IEEE802.3af/at | |
| Pin Definition | V+,V+,V-,V- Corresponding to 1,2,3,6 | |
| Power consumption | 4W | |
| Rated Input voltage | +44~+57VDC | |
| Operating Temperature | -40 ~ 85℃ | |
System Overview
The Industrial Unmanaged Network Switch is a reliable, high performance, high specification and cost effective un-managed industrial switch suitable for industrial network operations. The switch requires no configuration and so instantly operates as soon as you power it up. It can be installed by DIN-rail or wall-mounted, allowing users greater flexibility. This switch is ideal for extending Ethernet over distance via fiber daisy-chain, whilst eliminating the need for individual power supplies for IP video cameras and wireless access points. The switch is ruggedised to cope with unconditioned outdoor cabinets and industrial environments with its extended temperature range.Fully compliant with IEEE802.3af/at standard, providing Power-over- Ethernet over twisted pair cables and comes with Dual Gigabit SFP Slot built in.
Product Features
- Supporting all the network HD cameras and other network signals;
- Being compatible for IEE802.3,IEEE802.3U,IEEE802.3X and other internet protocol;
- Supporting the transmission pattern of full-duplex and half-duplex, with the ability of automated negotiation;
- Having the function of setting ring net in all the devices, and change transmission while the disconnection of the intermediate node;
- Providing the transmission of ultra low delayed data;
- Protecting from network broadcast radiation;
- Providing 4 set adaptive Ethernet ports, which can link with internet camera, the switch and so on;
- Adapting parallel or cross-wire connection;
- Having APC circuit, with constant optical power output and wide dynamic range;
- 1000Mbps optical fiber transmission, with large capacity which could be upgraded easily;
- Having advanced adaptive technology, no field of the use of optical or electrical adjustment
- Adapting three-level lighting protection technology on the computer ports and network signals.
- Support dial the code switch to set up monitoring mode function, extended the IPC access distance to be 250M
- Support VLAN function: Block mutual communication between downlink ports; improve the efficiency of data forwarding to ensure the safety of system, inhibit network storm functions: automatic identification and filtering broadcast packets.
- Reverse polarity protection
- Resettable fuse to protect against overcurrent
- IP-40 protection
- EFT protection for power line
- Ethernet ESD protection
- DIN rail and Wall mounted installation
- Dual 48vDC input for power supply redundancy
- Low power consumption
- Support the din rail & desktop installation
- Support the CBIT to ensure the HD image.

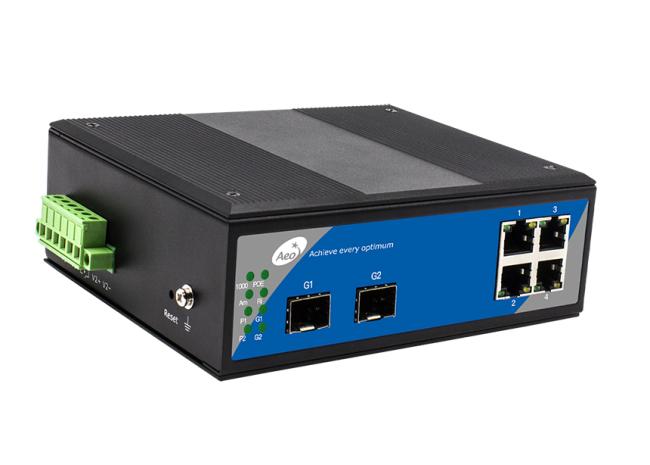

Product picture
Application Diagram
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
