16 Ports Gigabit PoE Switch 16 10/100/1000M POE Ports and 2 Gigabit Combo Ports
16 Ports Gigabit PoE Switch 16 10/100/1000M POE Ports and 2 Gigabit Combo Ports
Technical Parameter
| Ethernet Ports | |
| Downlink Ports |
16*10/100/1000 Base-T PoE RJ-45 (Auto-MDI/MDI-X)
|
| Uplink Ports | 2*10/100/1000 Base-T RJ-45 2*1000 Base-X SFP |
| PoE | |
| PoE Standard |
IEEE 802.3af/at (PSE)
|
| PoE Power Supply Type |
End-span
|
| PoE Pin Assignment |
1/2(+),3/6(-)
|
| PoE Power Output |
53.5V DC
|
| PoE Power |
250W max
|
| Switch Property | |
| Standards | IEEE802.3 , IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3X |
| Forwarding Modes | Store and Forward |
| MAC Table | 16k, support auto learning |
| Switching Capacity |
64Gbps / non-blocking
|
| Packet Forwarding Rate |
35.71Mpps
|
| Power Supply | |
| Input Voltage |
100~240VAC 50/60Hz
|
| Power Consumption |
20W (Including PoE)
|
| Reliability | |
| Surge Immunity | 6kV, Standard: IEC6000-4-5 |
| ESD Protection | 6kV Contact Discharge, 8kV Air Discharge, standard: IEC61000-4-2 |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%~95% (Non-condensation) |
| DIP Switch | Default: all ports are free to communicate. |
| VLAN: downlink ports are isolated from each other, but can communicate with uplink ports. | |
| Flow control: enable flflow control function, this mode is suitable for video surveillance transmission. | |
| Material | Metal shell |
| Installation | Rack mounted/desktop/wall mounted |
Product Introduction
This series product is 16-Port Gigabit PoE + 2-Port Gigabit SFP + 2-Port Gigabit Copper Ethernet Switch. This series switches provide 16 Gigabit Ethernet RJ-45 downlink ports, 2 Gigabit Ethernet RJ-45 uplink ports and 2 Gigabit SFP uplink ports. All RJ-45 downlink ports support Power-over-Ethernet (PoE+) and deliver up to 30W power per port. The switches support working in three modes: default, VLAN, and flow control. It can be widely used in video security monitoring systems, network projects, etc
Product Features
Abundant Interfaces
• UTP3-GSW1604TS-P200: 16*10/100/1000Base-T PoE RJ-45 ports
• 2*10/100/1000 Base-T RJ-45 Ports
• 2*1000 Base-X SFP ports
High Peformance Design
• 6kV surge immunity
• 6kV contact discharge, 8kV air discharge ESD protection
• Metal shell design
• Rack mounted / desktop / wall mounted installation
Support 3 Working Modes
• Default: all ports are free to communicate.
• VLAN: downlink ports are isolated from each other, but can communicate with uplink ports.
• Flow control: enable flow control function, this mode is suitable for video surveillance transmission.

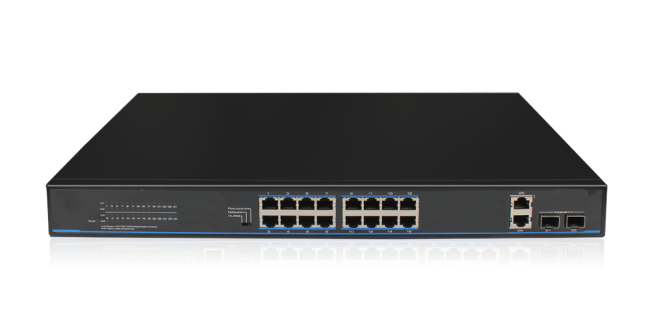

Product picture
