16 Port POE Switch 2 1000M Uplink and 16 100M POE Ports
16 Port POE Switch 2 1000M Uplink and 16 100M POE Ports
Technical Parameters
| Downstream Ports | 16* 10/100Base-TX( PoE) |
| Uplink Ports | 2*10/100/1000Base-T and 1*1000Base-X/SFP( Combo) |
| Network Standard | IEEE802.3 ,IEEE802.3u,IEEE802.3ab,IEEE802.3z,IEEE802.3X |
| Switching Capacity | 12.8Gbps |
| Packet Forwarding Rate | 8.34Mpps |
| Forwarding Modes | Store and Forward |
| MAC Address Table | 8K |
| PoE Standard | 802.3af/at(PSE) |
| PoE Power Method | End-span |
| PoE Line Pair | 1/2(+),3/6(-) |
| PoE Output Power | 54V DC , 30 watts max |
| CCTV Mode | 1. Downlink ports only communicate with uplink ports; |
| 2. Restrain network storm under 2Mbps; | |
| 3.Extend transmission distance to 250m; | |
| Surge Immunity | 6KV Execute:IEC61000-4-5 |
| ESD Immunity | 6KV Contact discharge |
| 8KV Air discharge | |
| Execute:IEC61000-4-2 | |
| Input Voltage | 100~240V AC；50/60Hz |
| Power Consumption | 250W(Including PoE) |
| Operating Temperature | -10℃~50℃ |
| Storage Temperature | -40℃~85℃ |
| Operating Humidity | 5%-95% |
Product Overview
The 16 ports PoE switch is an unmanaged PoE Ethernet switch along with 16 * 10/100Base-TX downlink PoE ports and 2 * 10/100/1000Base-T uplink Ethernet ports featuring 30-watt 802.3at PoE+ as well as 1 additional Gigabit Combo port. The total PoE power budget is up to 200 watts. It supports real-time PoE output LED display.The device can be widely used in video security monitoring systems, network projects, etc.
Product Features
● Provide 16*10/100Base-TX downlink PoE Ethernet ports, 2*10/100/1000Base-T uplink Ethernet ports and 1*1000Base-X/SFP.
● Downlink Ethernet ports support PoE+, each port supports max. 30W output.
● Support power consumption indication(LED indicates power output status).
● Accord with IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3 af/at standard.
● Quick installation, easy operation, convenient for wall-mounted,desktop and rack installations.
● Comply with the IEEE 802.3, IEEE 802.3u and IEEE 802.3ab standards
● Support 12.8G MAC address
● IPC Extender 250m the distance from IP camera to switch
● All ports support IEEE 802.3x half duplex flow control and full-duplex mode of back pressure
● Non-blocking switching architecture, full speed forward and maximum throughput filtering data packets
● Support the MAC address learning and automatically adjust the transmission mode and the transmission rate;
● The LED indicates the power, the link and activity, provide the working state of the simple tips and troubleshooting;
● Built-in application power 100-240v AC
● 19 inch standard five diamond shell casing design

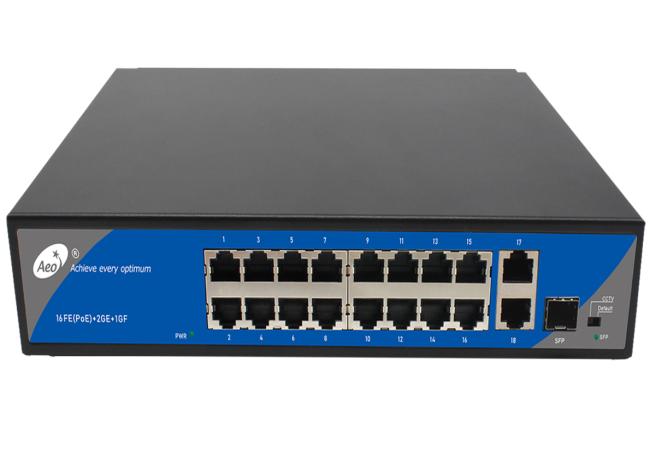

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
