4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST
4CH 3G/HD-SDI Fiber Converter 20KM LC/SC/FC/ST
The main advantages of the 4CH 3G/HD-SDI Fiber Converter:
1, 4 channel unidirectional hd-sdi video transmission over optic fiber
2, Compatible with SMPTE-292M HD-SDI and SMPTE-259M, SD-SDI standard signals, supporting 1485Mb / s , 270Mb / s rates
3, Support 1080I 60/50Hz, 720P 60/50/30/25Hz and many other video formats.
4, Automatic cable equalization to ensure signal integrity
5, Long transmission capability at least 20 km (6.2miles) , up to 80 km
6, ESD and surge protection circuit,which can effectively prevent static electricity and lightning damage
7, Provide light disappear alarm, remote power-down alarm, output signal status indication and input signal lock status indication
8. Ultra-broad temperature range (-20℃~+70℃), adaptable to various environments;
Technical Parameters
| Physical Interface | BNC |
| Number of Channels | 4 Channel |
| Input/Output Impedance | 75Ω (unbalance) |
| Video Format |
1080I 60Hz/50Hz, 720P 60Hz/50Hz/30Hz/25Hz |
| Video Direction | Unidirectional |
| Standard Video Input/Output Voltage | 0.8Vp-p |
| Video Voltage Range | 0.6~1.0Vp-p |
| Video Encoding bit width | 8bit or 10bit Auto |
| Return Loss | ≤-15dB@5MHz~1.5GHz, |
| Balanced Mode | ≤140meters of Belden 1694A at 1.485Gbps ≤400meters of Belden 1694A at270Gbps |
| Embedded Audio, Auxiliary Space, EDH Data | Transparent |
| Optic | |
| Fiber Interface | LC/SC/FC/ST |
| Fiber Type | Singlemode(9/125μ single-mode optical fiber ,default),Multimode Selectable |
| Wavelength | 1310nm,1550nm |
| Distance | 20~80KM(20Km default) |
| Number of Fibers | 1 |
Overview
The HD SDI to fiber converter also named as SDI fiber transceiver,which supports 4ch hd sdi over 1 single mode fiber to 20~80Km.It is a perfect and economic digital product for long distance with high resolution real-time video monitoring. It’s widely used for broadcast on television, high-definition video conferencing, high-definition video surveillance and other fields.

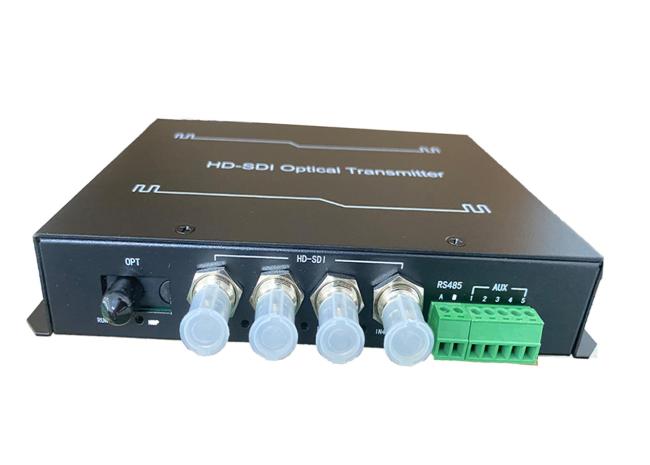

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
