1310 1550nm SC 20KM SM Single Fiber Media Converter Card
Gigabit Fiber Media Converter Card SC 20KM Single Mode Single Fiber
Technical Parameters
| port | One 10/100/1000Base-T(X) adaptive Ethernet port; one 10/100/1000Mbps optical port |
| backboard processing capacity | 4G |
| MAC address table | 1K |
| cache | 1M |
| Optical port | One 10/100/1000Mbps SC port |
| MAX frame length | 1632bytes |
| Transmission distance | Default 20km single mode single fiber,can custom to be 100km |
| Fiber wavelength | 1310nm/1550nm(single mode single fiber) |
| Transmission power | -10~-2 dBm |
| receiving sensitivity | ≤-24 dBm |
| Power consumption | ≤3.5W |
| input voltage | DC5V±5% |
| Relative humidity | 5~90% |
| Working temperature | -10~60°C |
Product Overview
Fiber media converter card is a photoelectric conversion equipment to convert Ethernet electrical signals into optical signals or convert optical signals into Ethernet signals, after inserted into the matching case, through converts electrical signals to optical signal to transfer in multimode or single-mode fiber. Breakthrough the limitation of the short cable transmission distance, meet the demand of high speed Ethernet transmission over a long distance.
Product features
◆ Built-in efficient exchange kernel, restrain the broadcast storm, traffic control, CRC error checking.
◆ Support 10/100/1000Base- FX optical fiber transmission standards, can be interconnected with other products.
◆ Using high quality components, low power consumption, low fever, can work stably for a long time.
◆ 10/100/1000 Mbps, full duplex/half duplex auto-negotiation, can be a smooth upgrade.
◆ The furthest distance can reach 100km.
◆ Providing independent of external power supply transceiver, plug-in data transceiver, 14 and 16 slot chassis, flexible configuration.
◆ Double power supply fault tolerant chassis, hot-swappable modules, high reliability.

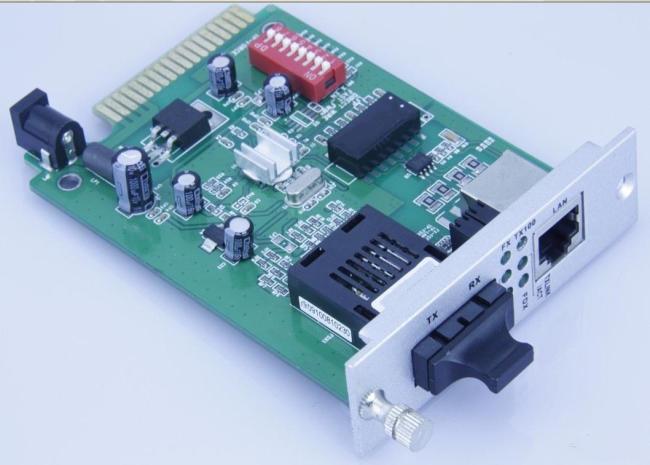

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
