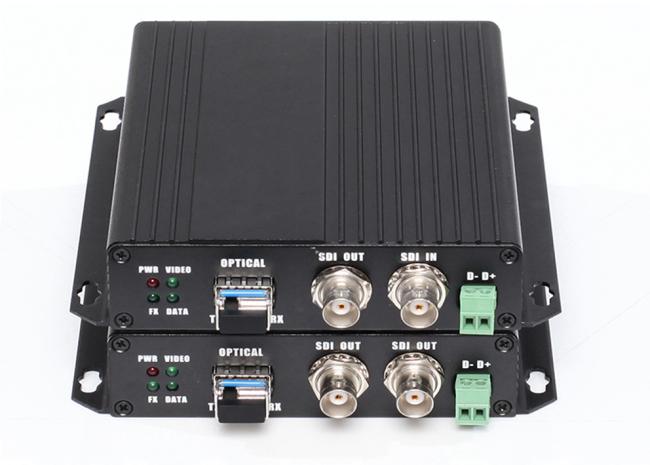

3G SDI Video 20KM SFP Fiber Optic Converter With RS485 RS422

3G SDI Video with RS485 RS422 Optical Fiber Optic Converter Single Fiber 20KM SFP Port

Technical Parameters

Overview

Featuring transmission of high resolution content with highest quality, 3G-SDI fiber optic video extender offers long-range transmission capacity over extreme distance of up to 20km. The 3G-SDI optical extender automatically recognized and transmits SDI, HD-SDI, 3G-SDI signals, with embedded audio and metadata, and is fully compliant with SMPTE 259M, 292M, 424M and ITU digital video standards.
To optimize SDI signal transmission, the input signals are automatically equalized and re-clocked. The 3G-SDI fiber optic video extender is ideally suited for use in digital signage, broadcast, staging, and HD CCTV applications. And fiber optic transmission, which is inherently secure and immune to outside interference, is favored in government, military, and medical environments.

Features

1. Extends SDI, HD-SDI, and 3G-SDI signals to very long distances over a single fiber via 3G video SFP

2. Supports multi-rate SDI at rates up to 2.97 Gbps and complies with SMPTE 259M, 292M, 424M and ITU digital video standards

3. Input equalization and re-clocking on buffered outputs

4. Real-time status LED indicators

5. Redundant output for previewing on a local monitor

6. Hot-Swappable
