Bidi Transmission 1ch Coaxial Mini Optical Video Converter With WDM

Price Negotiable

Price: negotiation

MOQ: 1 pair

Delivery Time: 5-8 working days

Brand: AEO

Product Description

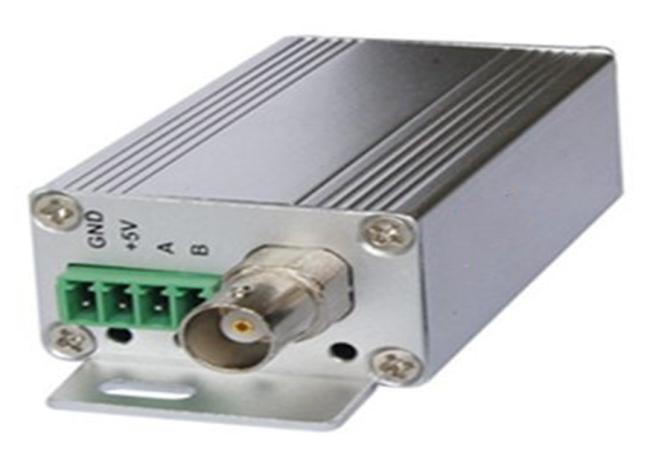

1ch Coaxial Mini Optical Video Converter Bi-di Transmission on 1 Fiber with WDM

Technical Parameters

Optical
Wavelengt	1310nm/1550nm
Output Power	-8~3dBm
Optic fiber	Single mode (9/125um) 20Km, multimode (50/125um) 5Km, ( 62.5/125um) 2Km
Receiving sensitivity	-30dBm
Interface	FC standard, ST/SC optional
Video
Channel Quantity	1ch, from camera to control center
Compatible Systems	NTSC/PAL/SECAM
Impedance/Voltage	BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain	< ±1%
Differential Phase	< ±1
S/N ratio	>60dB(weighting)(8 bit)
Interface	BNC
Electrical. Environmental. Mechanical
Operating voltage	DC 5V1A
Operating temperature	-35℃~+75℃
Storage temperature	-45℃~+85℃
Humidity	0~95%non-condensing
Dimension-standalone	83mm ×41mm ×25mm
Weight	0.1kg/piece (Net Weight), 0.3 kg/pair (Gross Weight)

Overview

optical video transmitter and receiver transmit 1ch video signals on optical fiber.

On 9/125um Single mode fiber its working distance is 20Km to 80KM while on multimode fiber it's 5Km. The featured excellence of this model is its mini size: 83mm *41mm *25mm.

Product Features

Mini Size: 83mm ×41mm ×25mm.
Lightning-proof solution
Low optical link loss – max 30dB
Without EMI, RFI and ground loop
Bi-di transmission on 1 fiber with WDM
Hot plug-and-play with switch power supply
