Product Description
Fiber Extender 300m Support 4K by Fiber Transmission Distance 60KM
Technical Parameters
| Operating Temperature Range | -5 to +35℃(+23 to +95℉) |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
| Video Input(Transmitter) | 1xHDMI Type A, 19-pin, female |
| Video Output(Receiver) | 1xHDMI Type A, 19-pin, female |
| Link(Transmitter/ Receiver) | 1m~60Km single / Multimode single / Duplex fiber optical cable |
| Module type required① | SFP Type, Single / Multi mode ,Single / Duplex fiber (optional) |
| Video Format | 4K@60Hz YUV 4:2:0, 1080P@60Hz, 1080i, 720P, 576P, 480P |
| Audio Format |
|
| HDCP Input | HDCP 2.2, HDCP 1.4 |
| HDCP Output | HDCP 1.4 |
| Power consumption |
Transmitter: 3watts(Maximum) Receive: 3watts(Maximum) |
| Dimension (L×W×H) |
Transmitter: 96*100*25mm Receive: 96*100*25mm |
| Net Weight | 475g (Pair) |
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio .Overview
- ✔HIGH PERFORMANCE STANDARD FIBER EXTENDER KIT — Provides ultra–reach signals over either multi–mode or single–mode optical fiber infrastructures, using OSP SFP+ units. Near–zero latency video chroma sub–sampling conversion technology, is employed to auto–adapt above 10G HDMI signals to 10G optical link signal data–rate.
Note: To ensure specified performance, support, and warranty of this product, use only FoxUn certified hi–performance OSP SFP+ pluggable optical units. - ✔HDMI SIGNAL EXTENSION — HDCP 1.4 compliant and resolution up to 4K@60HZ 4:2:0
- ✔ EDID MANAGEMENT - Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems
Features
- Transmit from 1m to 60KM
-
Support resolution upto Ultra HD 4kx2k @60Hz, YUV 4:2:0
-
Support bandwidth upto 10.2Gbps.
-
Support Single /Multi mode, Single /Duplex fiber (Optional).
-
Support HDCP2.2 input, HDCP 1.4 output.
-
Support HDCP1.4 input, HDCP1.4 output.
-
With Automatic EDID for rapid integration of source and display.
-
Support LPCM 7.1, Dolby True HD, DTS-HD Master Audio.
-
Locking power supplies.
-
Surface-mountable..

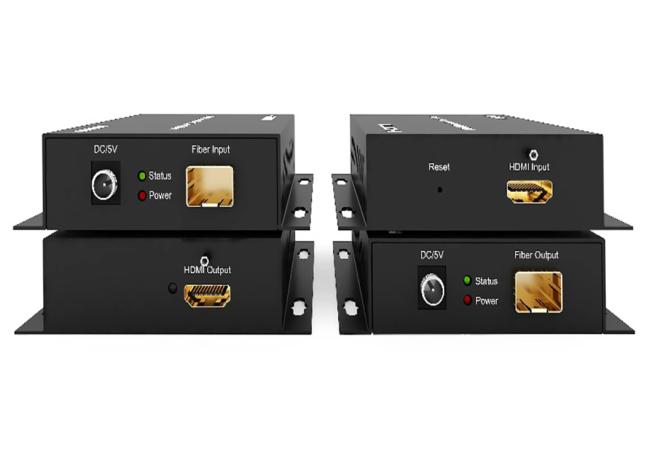

Product picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
