10/100/1000Mbps 1 RJ45 And 8 SFP Fiber Media Converter
10/100/1000Mbps SFP Fiber Media Converter 8SFP and 1RJ45
Technical Parameters
| Network Media | 10Base-T or 100Base-TX or 1000Base-TX to 1000Base-FX |
| Forwarding Mode | Store-And-Forward Architecture |
| Ethernet Rate | 10/100M or 10/100/1000M |
| Network Protocol | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Optical Fiber | Dual fiber or Single fiber |
| Optical Distance | 0~120km |
| Power Supply | DC5V1A or 5V2A |
| Power Consumption | 3.5 w (Input:DC5V 1000mA) |
| Lightning Protection | Multi-level protection (3000V) |
| Working Environment | 0~70℃ |
| Certification | CE,FCC, ISO9001 |
Product Overview
10/100/1000Mbps SFP Fiber Media Converter 8SFP and 1RJ45 has the similar functions as normal fiber media converter, when you use the converter,all the data from different ports can be shared, realize the data sharing.It is suitable for intelligent community, it extend the network transmission from100m to 120km. Also it can be realize the interconnection between motherboard server, Repeaters, hubs, switches, terminal.Plug and play design makes easy installation, no on-site adjustment, All the light, electricity interfaces are in line with international standards, products applicable to different harsh industrial environment. The installation and operation procedures of the Fiber Optic Media Converter are simple and straight forward. Operation status can be monitored through a set of Diagnostic LED located in the front panel. Since the data rate is auto-negotiated, no internal adjustments or setting are necessary. Standard shielded RJ-45 connectors are provided for Cat. 5 compliance.
Product features
* Often used in series or cascade network
* Card-type or Stand-alone type for your choice; suitable for concentration management in 2U Racks
* Broadcasting filtration function, automatic recognizing and modifying address with Store-and-transmission operational mechanism
* Cache size for 512KB, address table size is 4KB
* Ethernet 10base-t or 100Base - TX 100Base - FX fiber media transition
* Supporting IEEE802.3, IEEE802.3U, IEEE802.3X, IEEE 802.3z/AB, IEEE802.1d
* Supporting full duplex flow control or half duplex back-pressure flow control, with auto negotiation function
* Electricity support 1000Mbps,100Mbps, both ends can use different speed (full-duplex work bandwidth for line-speed 2XMbps)
* Provide a link loss diagnosis, electric link and light links diagnosis, dynamic data transmission, full-duplex/half-duplex, speed indicator
* Provide double RJ-45 electrical automatic cross connection, connect switchboard, concentrator
* Optical fiber interface properties is good, good compatibility and high reliability
* Provide complete after-sales service and five years for maintenance services

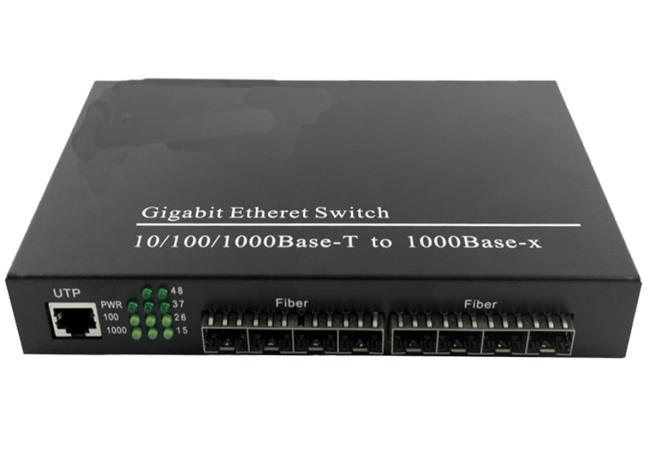

Product Picture
Packaging & Shipping
● All of our package are international standard package
● We will deliver our products as soon as the order confirmed
