32ch Telephone Fiber Converter With 4 10/100Mbps Ethernet Ports

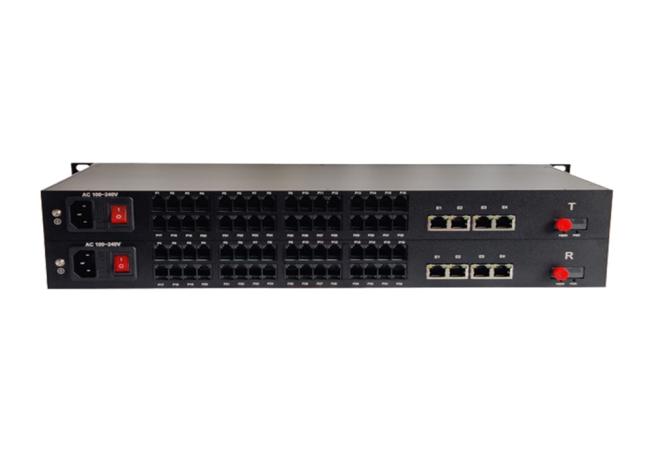

32ch Telephone Fiber Converter with 4 10/100Mbps Ethernet Ports

Technical Parameters

Overview

32ch Telephone Fiber Converter with 4 10/100/1000Mbps Ethernet Ports uses a special digital multiplexing chip, which integrates almost all digital logic functions in the device, thus significantly improving the performance of the product and reducing the cost. The equipment has excellent performance, stable and reliable operation, low power consumption, high integration, small size and easy installation and maintenance. A single optical fiber can simultaneously transmit 32 channels of telephone signals and 4 channels of 100m ethernet signals. Our company has the core technology, the use of PCM pulse coding modulation technology, voice quality is clear, stable and reliable, each voice signal has a three-level over current voltage protection unit, widely used in government units, electric power, public security, military, civil aviation, maritime, mining, highway and other college networks or public networks.

Product Features

1. Provide 32 channels telephone interface

2. Support 4 channels 100m ethernet

3. Use of audio frequency transformer and photoelectric coupler to completely separate the telephone interface and other circuits

4. Voice interface support caller ID and provide polarity reversal signal

5. Each voice signal has three levels of over-current voltage protection

6. Conventional standard single mode transmission 20KM, multi-mode 1KM, the farthest single mode can be customized up to 100KM

7. Single fiber / dual fiber transmission (optional)

8. No compression, no delay, high fidelity speech

9. Plug and play, no debugging

10. Perfect LED status display function, easy to maintain and manage

11. The device distinguishes between transmitter and receiver, and the label distinguishes the relay switch and the telephone
